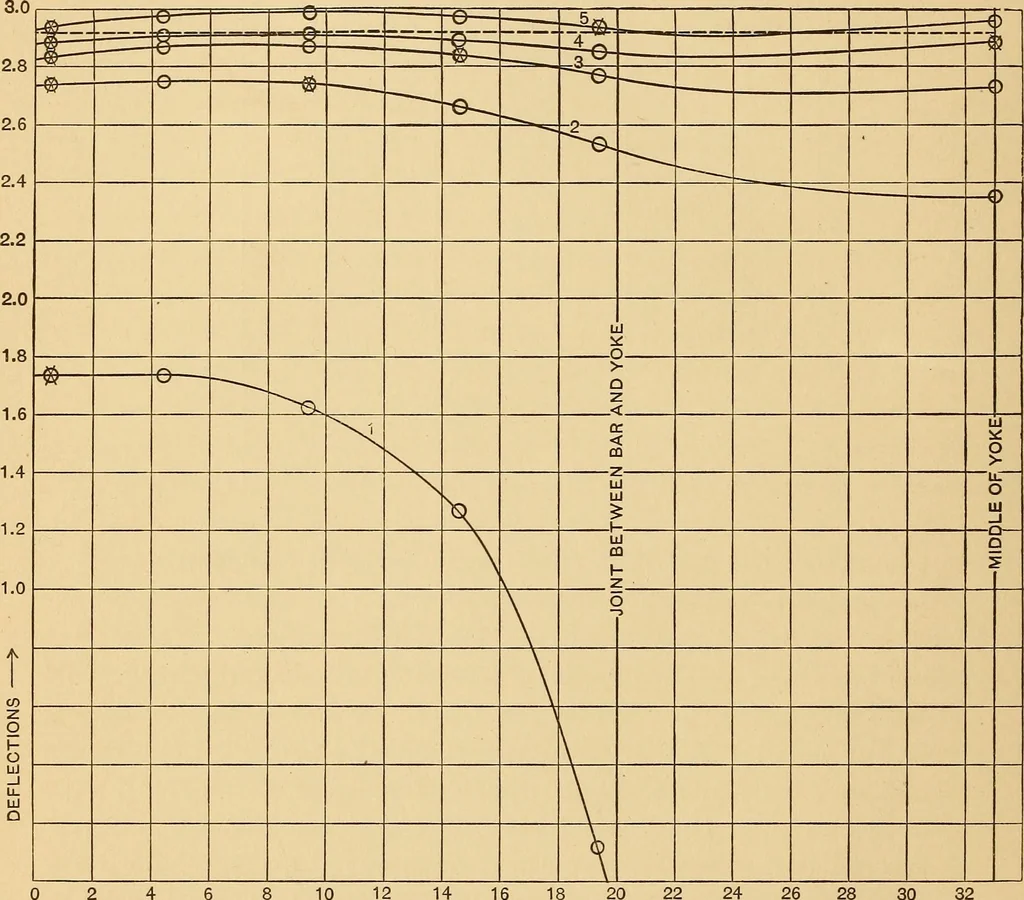

tion is increased. To secure equality of flux acrossthe middle section and any section beyond the section of maxi-mum flux, direct compensation is applied. As a result the total 50 Bulletin of the Bureau of Standards. [Vol. 6, No. i. induction at all points is raised and the uniformity is… … 2 4 6 8 10 12 14 16 DISTANCE OF TEST COIL FROM CENTER OF ROD 30 Fig. 9.—Showing the Distribution of Flux along a Double Yoke and Rod Magnetic Circuit withVarious Degrees of Compensation. The Crosses on each Curve indicate the two Cross Sections,the Fluxes through which are made equal. The Solid…
