A dictionary of architecture and building; biographical, historical and descriptive (1901)
Sturgis, Russell, 1836-1909 · New York, Macmillan · leaf 561

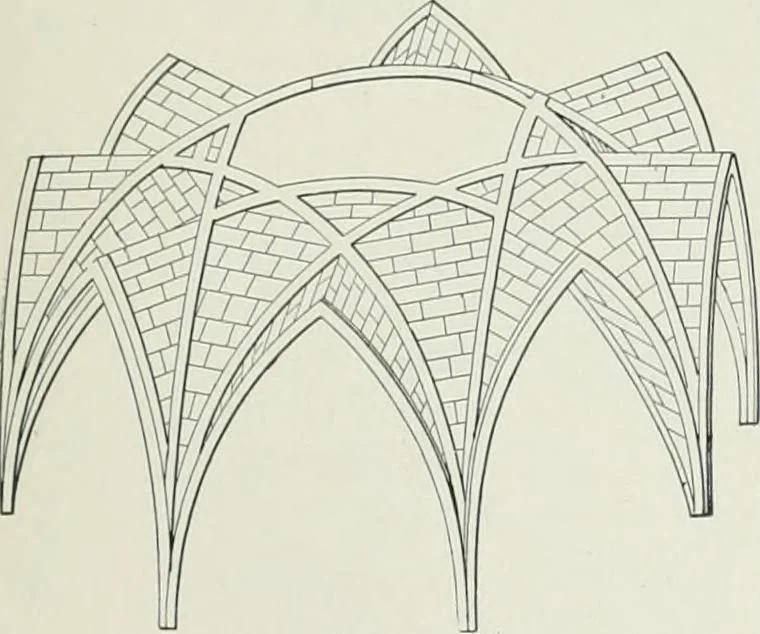

methods of jointing panels are shown inFig. 45. In early examjiles only groin and transverseribs are used, and each starts with its full sec-tion, b\it later on they are Inuiched together,each starting with only its sotiit roll visible, asin Fig. 46. As they rise the section developsimtil the ribs… … Fig. 74. Anabasis of Bib Vaulting. A. Simple. Fig. 47. From Castle Campbell, Scotland. Fig. 48. The panel vaulting of the AfterGothic in France. B. Compound. It will be best to classifythese according to the number of cells.901 VAULT 1. Tripartite. These cover a triangularspace, which usually…
Architecture
