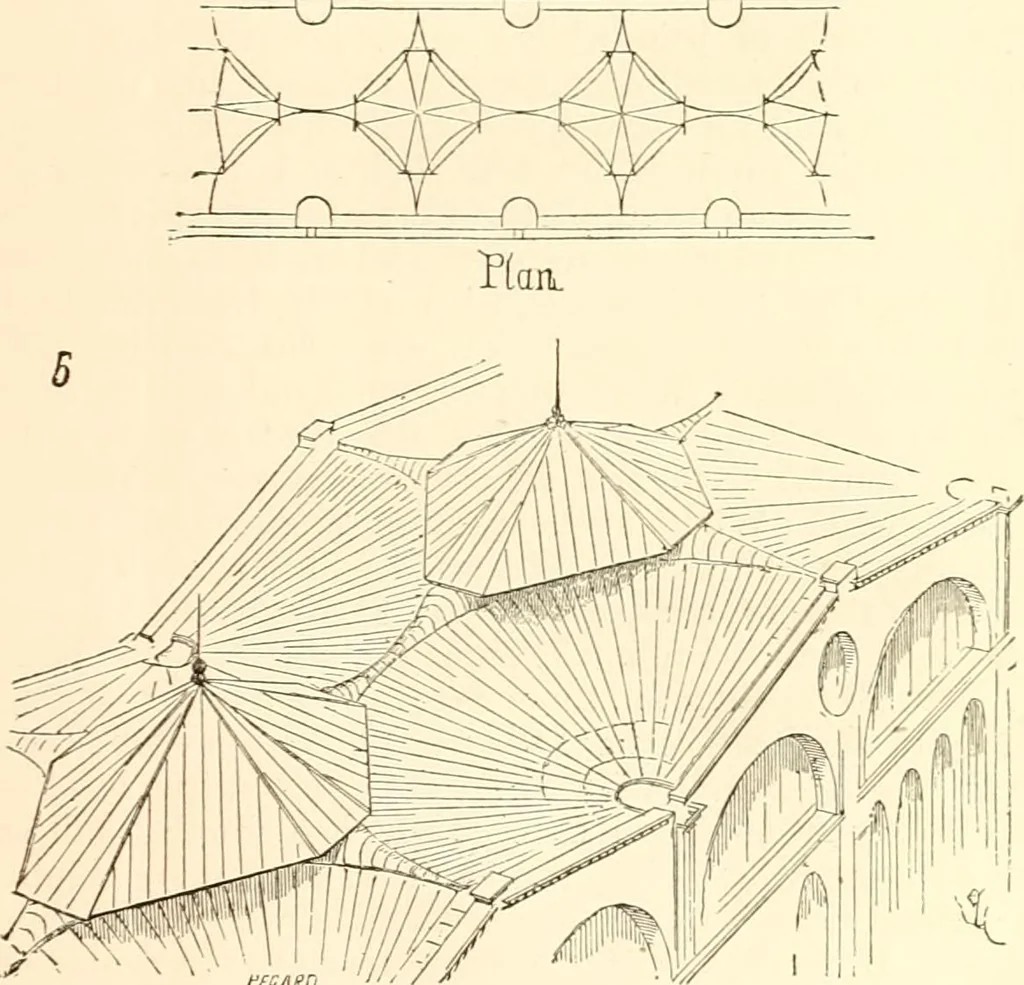

downin the form of curved struts and are bolted at o, against theseking-posts above the lower termination. At N is given to ascale of h the section of the king-jjosts across these fastenings.The pieces G are furnished with lateral grooves to receive theiron balustrades of the upjjer gallery (see… … NSARD Fig. 5.—Roof over Iron Network VaiUtiDg. sheets of metal which compose the covering. The conical shapeof the roofing is in fact well adapted for a metallic covering ;at each bay there is a gable or pediment of masonry. Onlythe middle parts formmg the flat ceilings require a special roofFig. 5…
