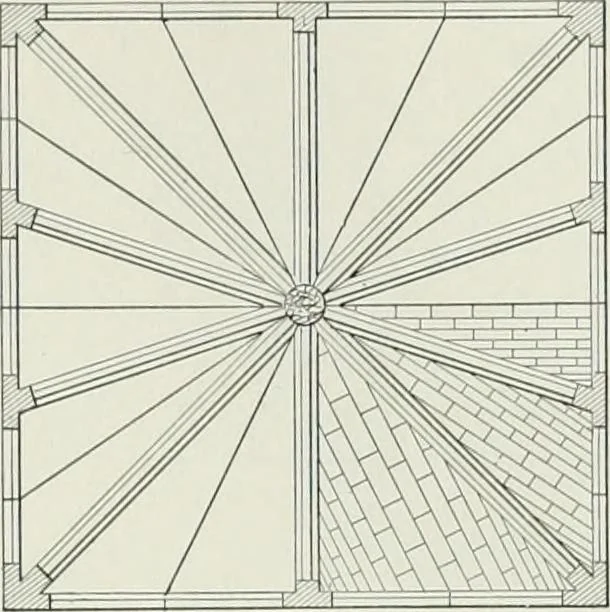

Fig. 74. Anabasis of Bib Vaulting. A. Simple. Fig. 47. From Castle Campbell, Scotland. Fig. 48. The panel vaulting of the AfterGothic in France. B. Compound. It will be best to classifythese according to the number of cells.901 VAULT 1. Tripartite. These cover a triangularspace, which usually… … Fig. 7r> (Plan). (a) AVith groin rilis only (Fig. 49). (b) VCith groin ribs and transverse arches(Fig. 50). From Gerland, France; one of theearliest examples. Both ribs and arches aresemicircular, and the vaulting is therefore domi-cal. (r) Groin and wall ribs only (Fig. 51). (d) Groin,…
