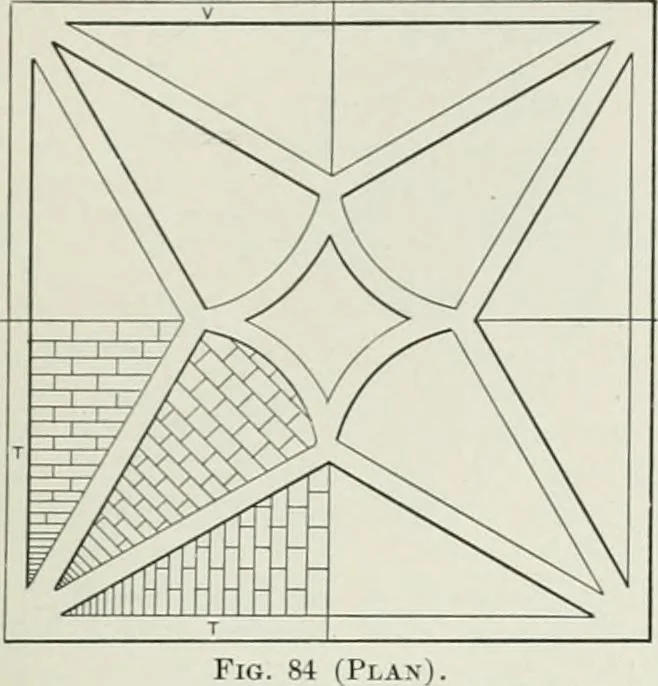

Fig. 80 (Plan).963 Fig. 83.964 VAULT each side are met at the centre, not by theirother halves, Iwt by an iiiteruie<liate rib. 3. Qiiimiueiiartite. (a) For covering a pentagonal space. Twoforms are shown in Fig. 57, and also one cover-ing a semicircle, and one a trapezoid. … Fig. 84 (Plan (b) Covering a rectangle (Fig. 58). It iscomposed of three quarters of a quadripartitevault and one quarter of a sexpartite. 4. Sexpartite. Figure 59 shows plans ofvaults with six cells, and Figs. 60, 61, .show theform known as sexpartite, or hexapartite, foundin late Romanesque and…
