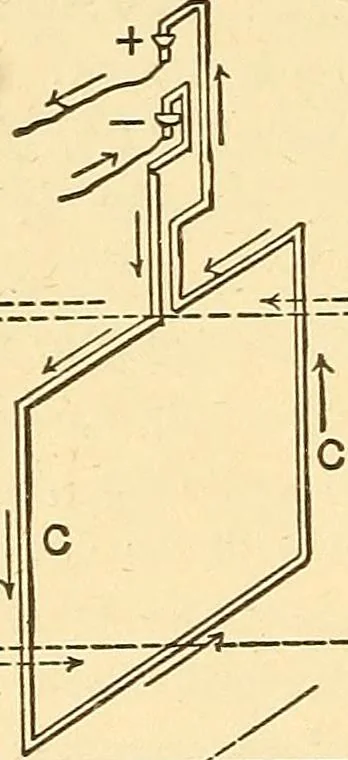

ent. The circuit is bent in the form of a rectangle,circle or solenoid, and terminates in points thatdip in the mercury cups. The current is led intoand out of the apparatus at the points -f- and —at the base of the upright supports. When a magnet, or another circuit, is ap-proached to the movable… … Fig. 217. Deflection 0/ Circuit by a Magnet. below the movable circuit C C, the circuit willtend to place itself at right angles to the axis ofthe magnet. This movement is the same aswould occur if electric currents were circulatingaround the magnet in the direction cf the assumedAmperian currents.…
