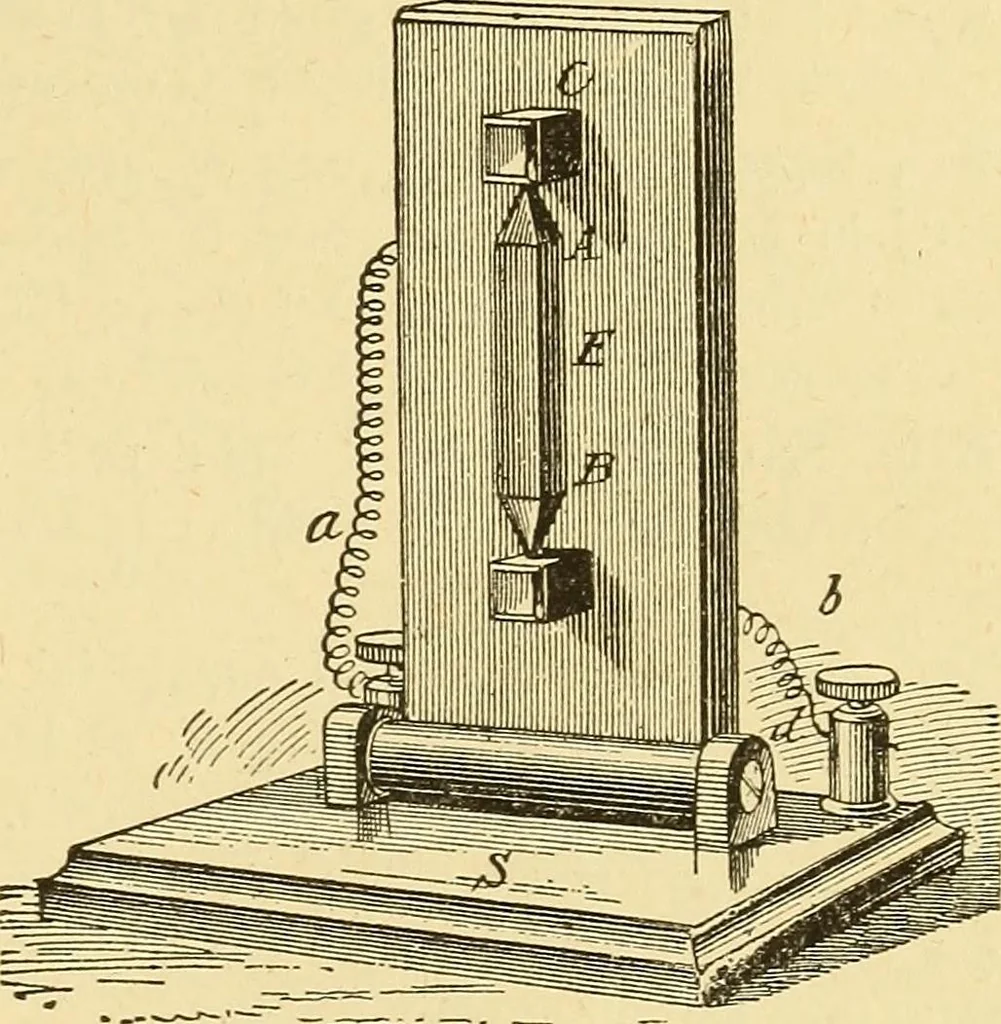

of carbon E, pointedat both ends, is inserted in holes near the ends of-cross-pieces of carbon B and C. The thin uprightboard A, on which these are supported, acts as a sounding board or diaphragm, and its movementsby sound waves are at once audible to a personlistening at the receiving telephone.… … Fig. 3Q7- Microphone. Microphone Relay.—(See Relay, Micro-phone?) Micro-Seismograph.—(See Seismograph,Micro?) Microtasimeter.—An apparatus inventedby Edison to measure minute differences oftemperature, or of moisture, by the resultingdifferences of pressure. A change of temperature, or moisture, is…
