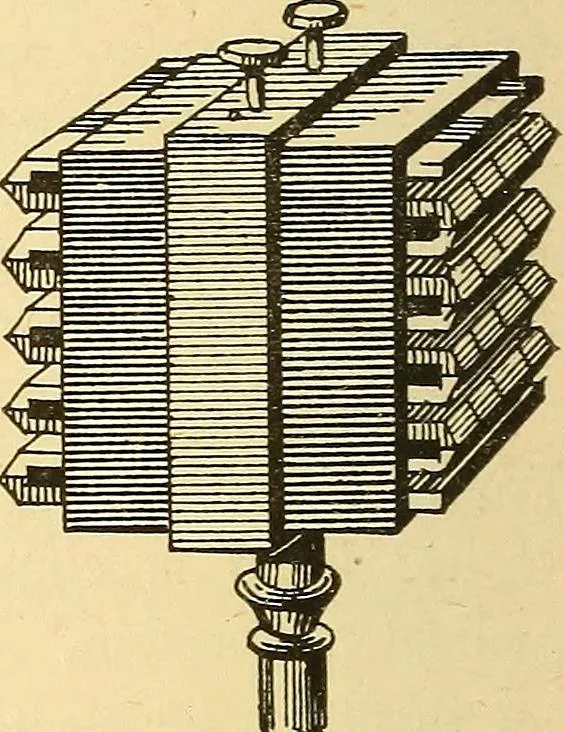

couples connectedin a continuous se-ries, as shown partlyin Fig. 434, are insu-lated from one another,except at their junc-tions, and packed in ametallic box, supportedas shown in Fig 433. The free terminals of Fig. 433. Thermo-Electricthe series are con- Pile. nected to binding posts. Differences… … a+ A careful inspec-tion will show thatthe junctions areformed successivelyat opposite faces ofthe pile, so that ifthe junctions benumbered succes-sively, the even junc-tions will come at Fig. 434. Series-Connectedone face, and the Thermo-Electric Couples,odd junctions at the other. This is…
