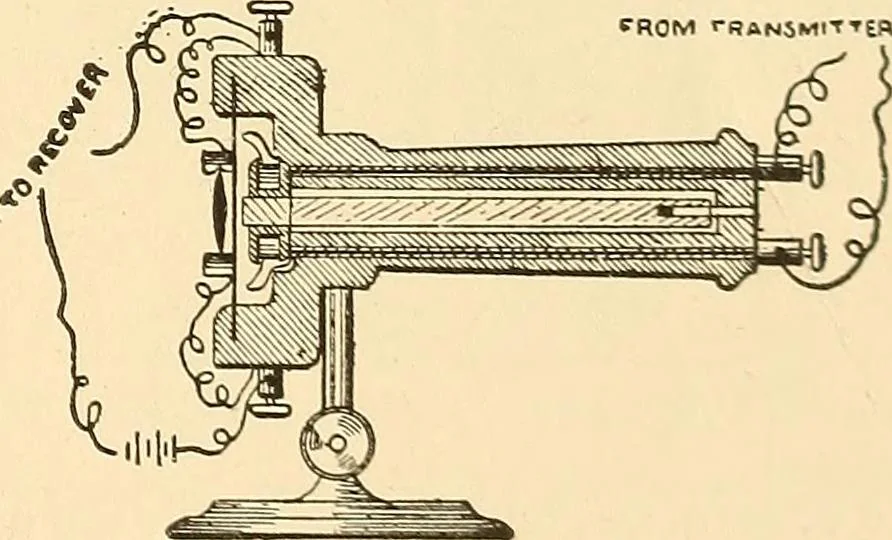

Fig. 480. Microphone Relay.A form of microphone relay is shown in Figs.480 and 481. Several minute microphones mounted on the fROM <-HaNjMif»E» … Fig. 481. Microphone Relay. diaphragm of the telephone whose message is tobe repeated, so vary the resistance of a local bat-tery included in their circuit as to automaticallyrepeat the articulate speech received. The microphones may De connected either in Rel.] 448 [Rel. multiple arc or in series,…
