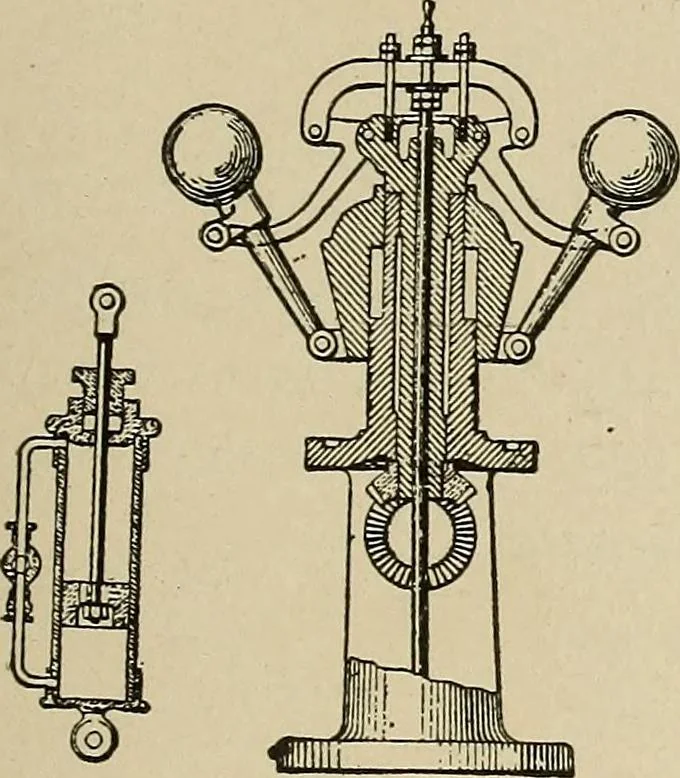

308. • HUNTOON GOVERNOR.—A ribbed cylinder, A, is partly filledwith oil. A paddle wheel, B, is re-volved by the pulley and shaft whichby fluid friction moves the ribbed cyl-inder and pinion in the same direction.The pinion meshes in the toothed sec-tor, which is counterbalanced by anadjustable… … 311. PROELL GOVERNOR.—In addition to the weight lifted by the cen-trifugal balls, an air dash pot is used inthe line of the central rod connected atthe top by a yoke pivoted to the bell-crank arms. The dash pot with bye-passis shown at the left.
