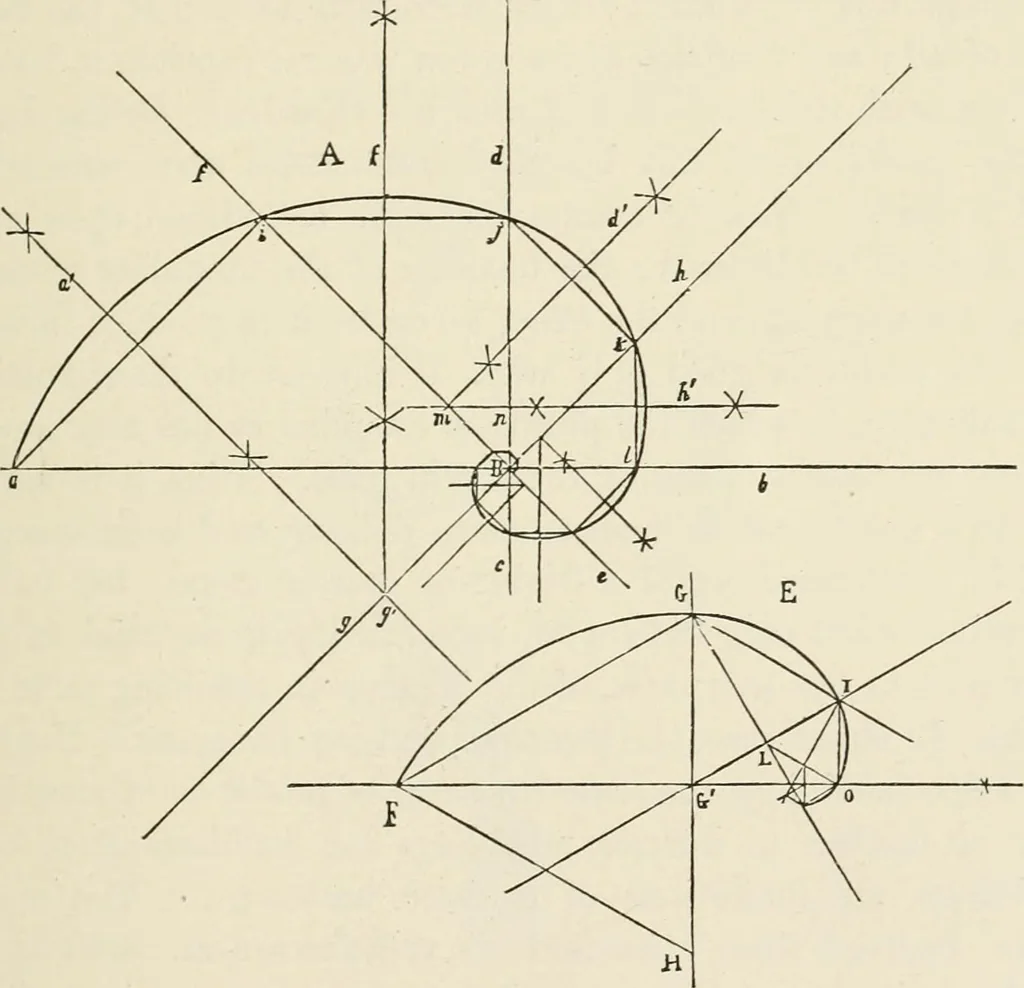

rture of tliecurve, draw the perpendicular a i to the line ef -, from tlie point i,tlie perpendicular ij to tlie line c d ; from the point j, the perpen-dicular /■ k to the line y h ; and so on to the eye B of the volute.Perpendiculars dropped from the centres of hnes a i and ij will nieetat / on… … figure whose energetic curve recalls certain volutes of primitive lenianart. Other volutes are obtained by means of the equilateral triangle(see Fig. 99, E) ; E G H being this triangle, strike the arc E G fromthe point H ; divide the side G H in halves, and on the half G Gconstruct the equilateral…
