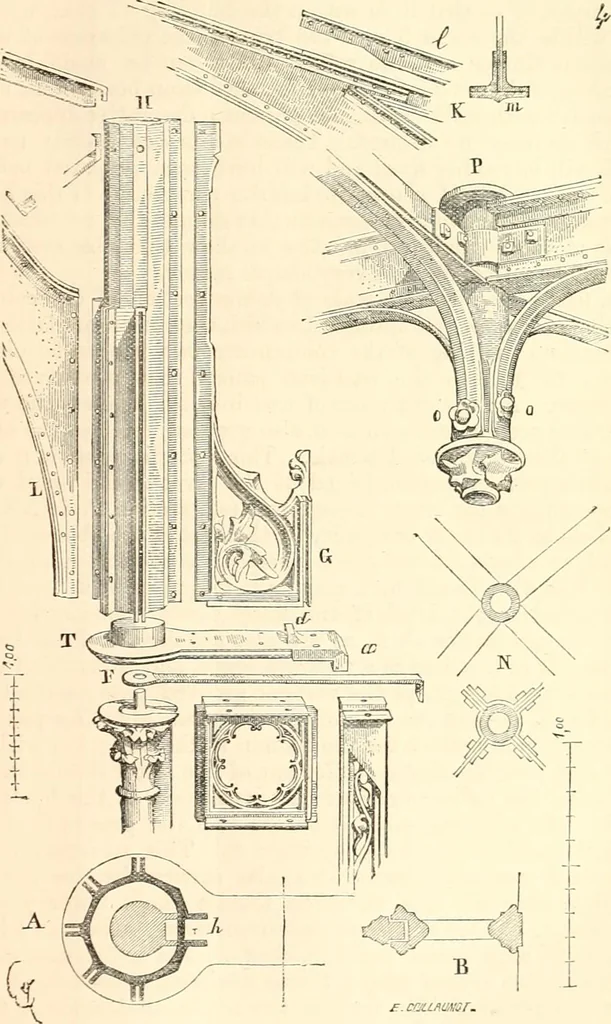

. i^f/itf/ tt Pu£ ,A-^ VOITKS K\ vyvy LECTURE XIII. 133 … Fig. 4.—DoUiils of Iron Network VauUiiig. 134 LECTURES ON ARCHITECTURE. now to the closing in of tlie vaulting, the filling in of the net-work. Instead of resting the soffits on the trusses, we supposethem to be placed on the flanges of the lower angle-irons of theseplate-trusses ; so that from…
