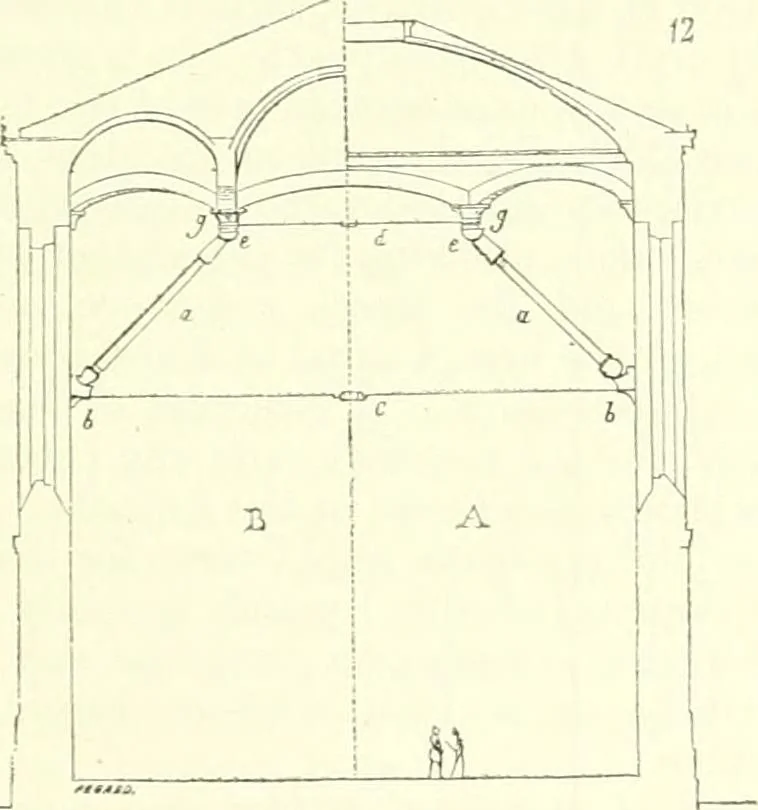

upporting struts, the lines comiecting the points ah c d thatof the frame, and the line e/that of the tie. If we turn archescorresponding with the lines a h, a d, d i, h g, h c, c h, a h, d c,we shaU have a cluster of arches on which we shall be able toerect the round dome A, a square dome over the… … Fio. 12.—Combined Iron and Jlaaouiy Construction.—Section of Vaultiui;. The section, figure 12, through o p at A and through o s atB, explains this system ; but it will be still better explained bythe perspective view of the interior, Plate XXII. The supportingstruts or slanting columns a (see…
