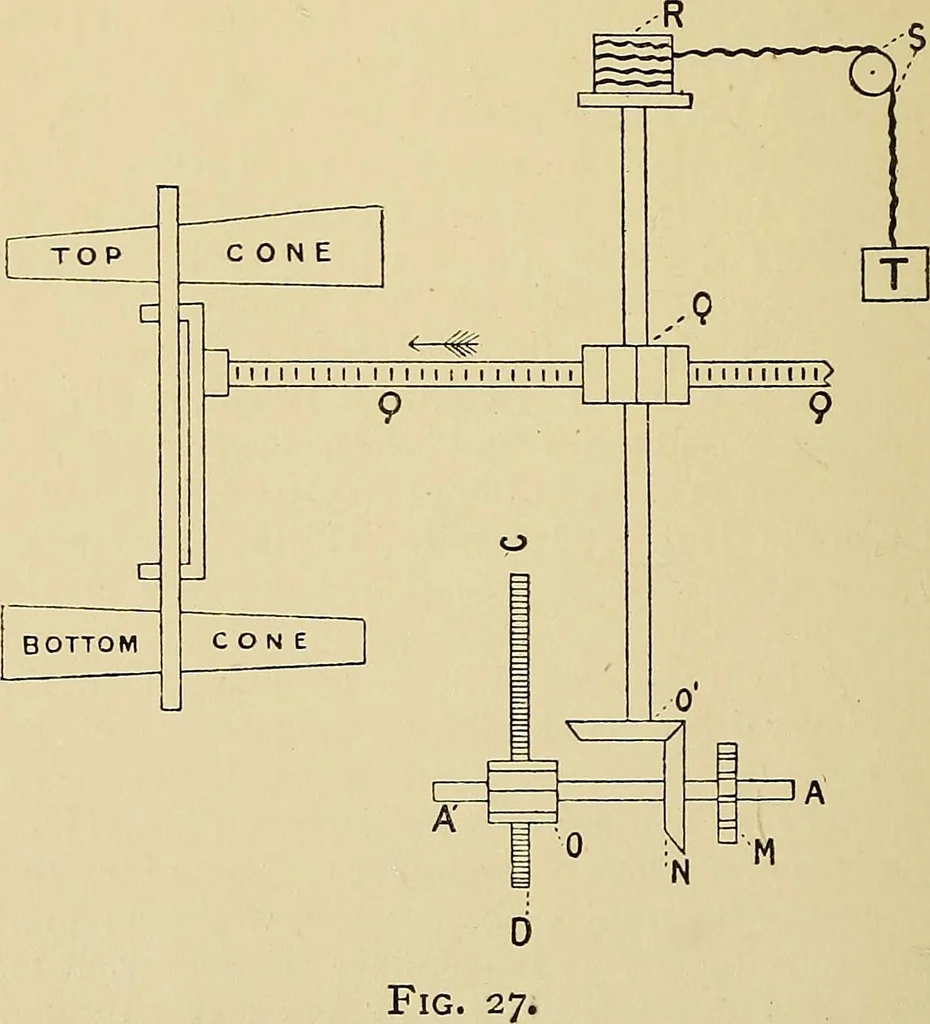

from empty bobbins to full. RESULTS OF LOWER CRADLE MOVEMENTS. So far our remarks have been confined to showing howthe cradles received their movement. We have now todeal with the vastly important results of these movements.Attention must first of all be directed to the lecturediagrams, Fig. 27 and… … 123 upper cradle are three wheels, M, N, O, as shown inFig. 27, in which a side view of these wheels is combinedwith a front view of the cone drums and cone rack. Theround rack, or diminishing rod C D, shown in Fig, 26, isgiven again, and for explanatory purposes is shown atright angles to the long…
