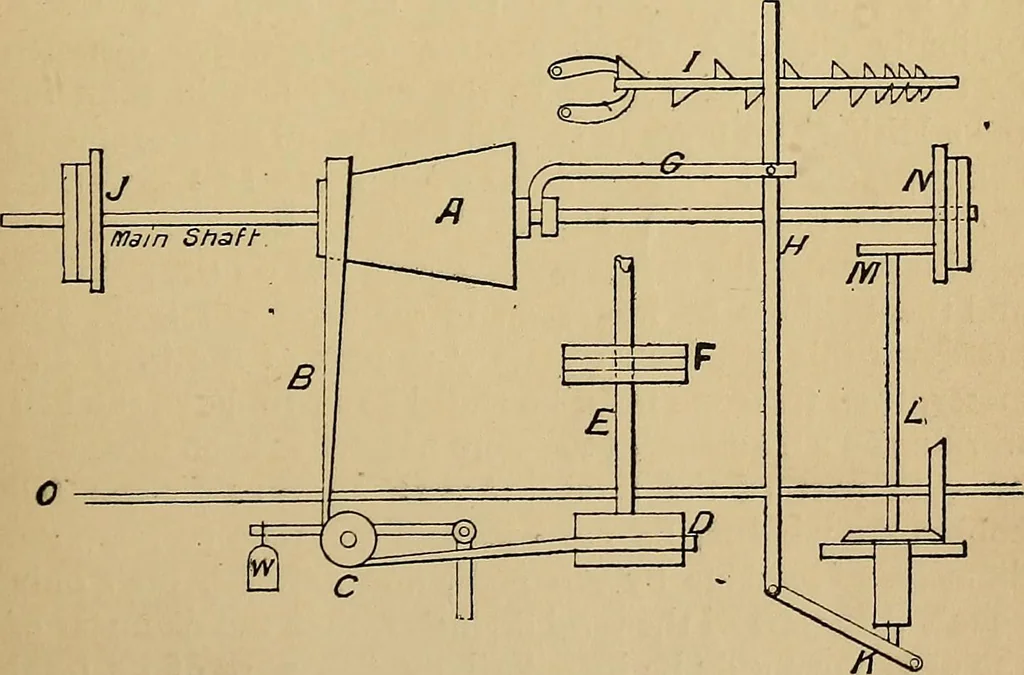

however, at thattmie existed in the various contrivances which were devisedfor accommodating the winding to the ever-increasingdiameter of the bobbin. UNEQUAL RACK. The lecture diagram in Fig. 2 indicates one arrange-ment which at that time was in considerable favour. Therewas only one cone, and… … Fig. From this uniform cone A, motion was conveyed by thebelt B passing round the guide pulley C to the pulley D onthe vertical shaft E. On this shaft was the bobbin pulleyF, round which passed a cord, which was then conductedround all the wharves or pulleys upon which the bobbinsrested. It will be…
