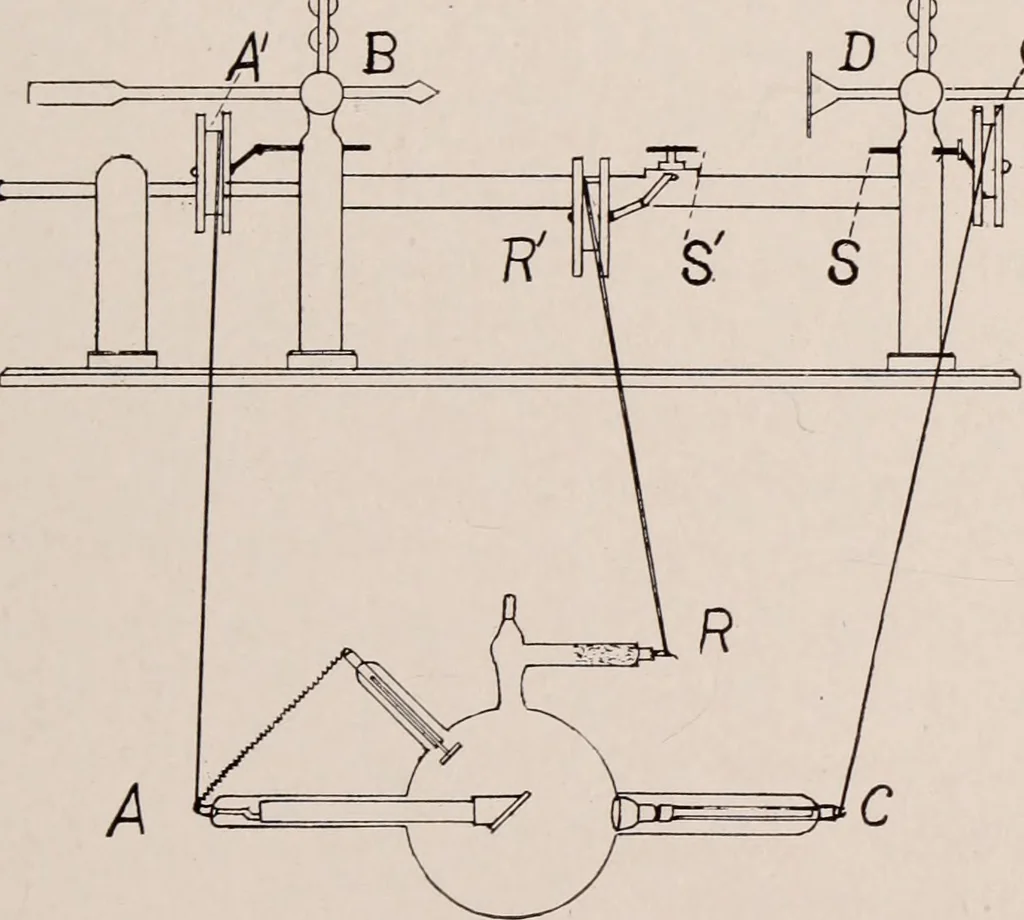

gh such a tube, it should light up in a char-acteristic manner forming two hemispheres which DENTAL AND ORAL RADIOGRAPHY TECHNIC 111 have a definite line of demarcation. The hemi-sphere in front of the target which is the activehemisphere, is evident by a florescence deepapple green in color, while… … Fig. 50. nect the tube to the x-ray machine as shown inFig. 50. See that the third terminal (S) ismoved well away from the negative terminal (#),or better still, disconnect the wire running to theregulating chamber (R). Now, move the slidingrods (B and D) of the secondary spark gap, to- 112 DENTAL…
