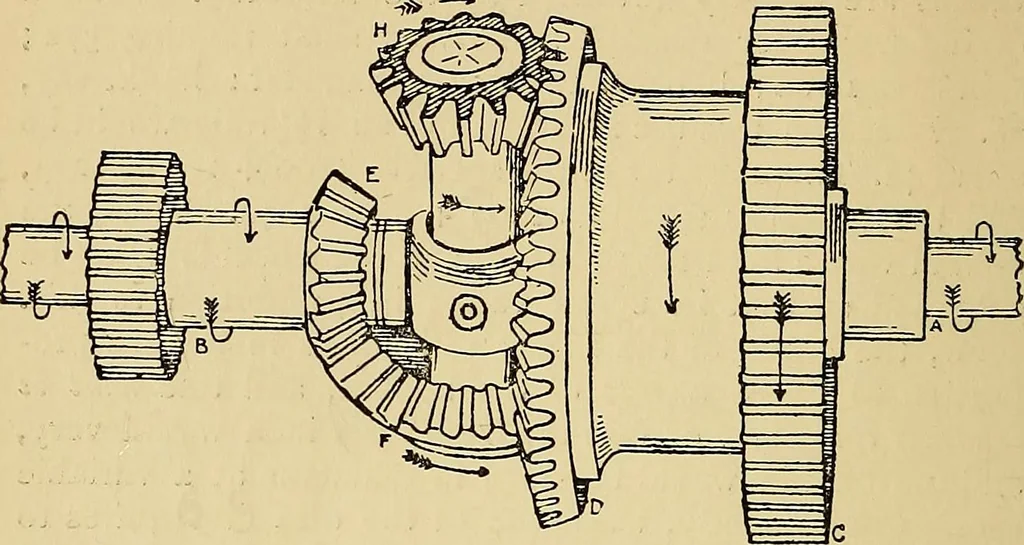

inventionof Mr. Tweedale. It has certain distinctive features of itsown, whilst at the same time partaking of the principlesof Holdsworths motion, and some of the features of all thenew motions. To merely glance at it one would thinkthat it was a very simple motion, as indeed it is, in so faras its… … Fig. 55. DESCRIPTION OF PARTS. Referring to Fig. 55, the shaft A running through thewhole of the mechanism is the jack shaft or main shaft ofthe frame. In the centre of the parts shown it will beseen that on the main shaft is cast a boss, or cross pieceG« Through this boss is passed a short…
