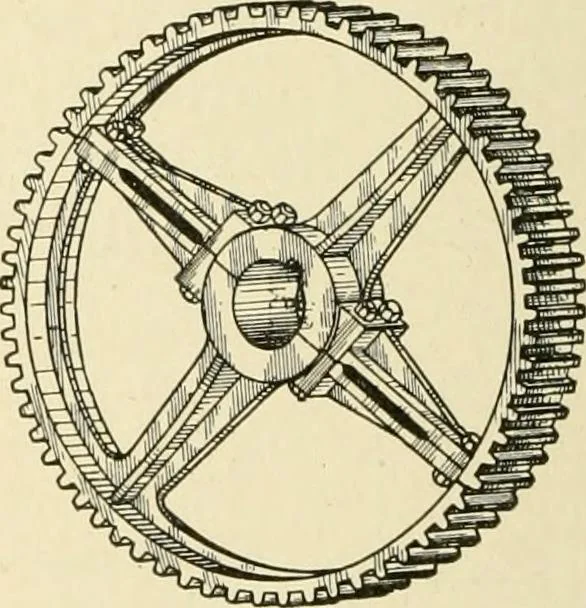

can beworn down until it is less than 1 inch thick. Another satisfactoryarrangement of tire is that illustrated in Fig. 25. There are noretaining rings required in this case, the tire being bolted to the rim.Such a tire cannot get loose. Axle Gmrs. On the car axle, Fig. 2G, is mounted a gear… … Fig. 27. Solid Axle Gear Fig. 28. Split Axle Gear second wheel is pressed into position. The position of the axlegear on the axle can be seen in Figs. 16 and 26. The gear is keyedto the axle to prevent turning. Fig. 28 shows a gear which issplit along a diameter with the two halves bolted together.…
