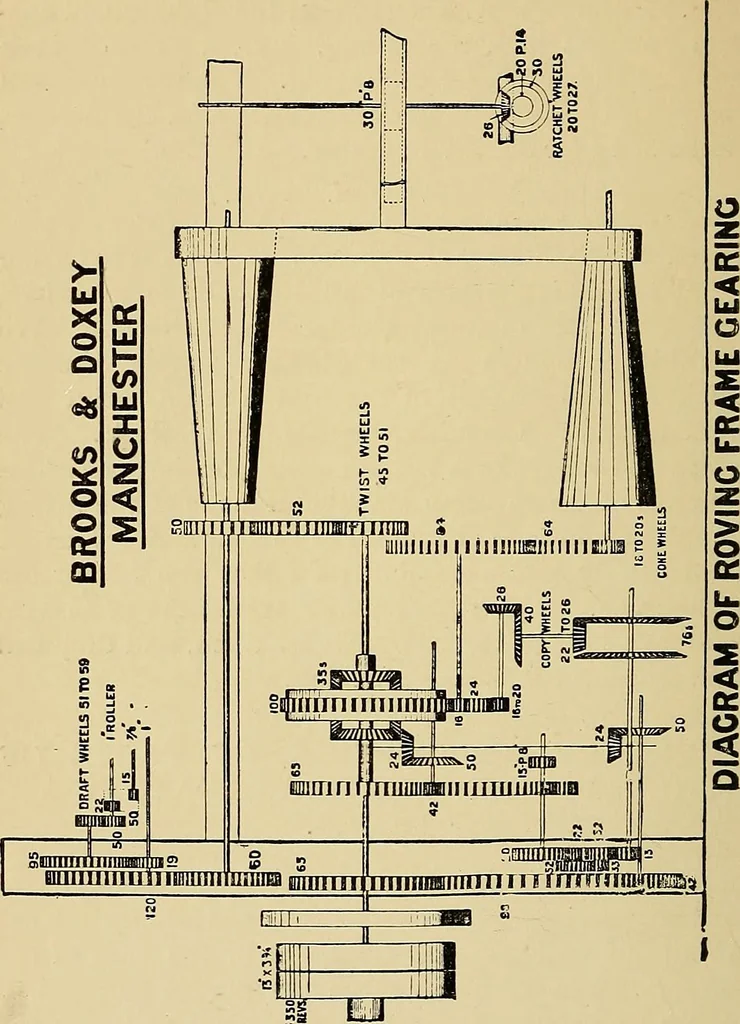

duced impressions of Messrs. Brooksand Doxeys largeand admirable wall maps for classes as in the case of thedraw-frame. The numbers serve the double purpose ofindicating to beginners the part described and also theapproximate sizes of the wheels, etc. In this descriptionwhen the number of figure is… … JACK SHAFT. Fig. A* This is the main shaft ot the machine in everycase. It receives motion from the line shaft and givesmotion to all moving parts of the frame. It may makeabout 300 to 350 revolutions per minute. 57 FAST AND LOOSE PULLEYS I3X3f. These are fixed on the outer end of the jack shaft…
