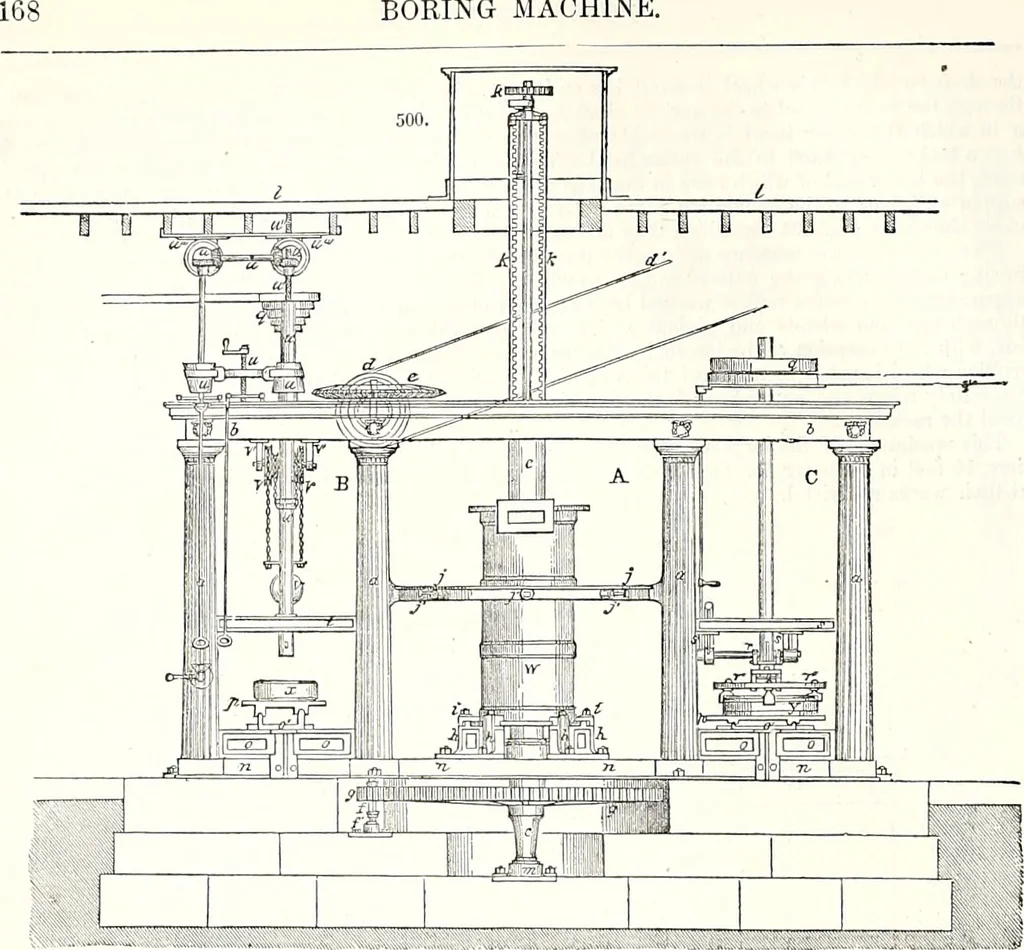

motion from therack n down to the cutter-head b.All revolves with the boring-barexcept the internal screw-wheel orscrewed hoop p, which is stationa-ry, being bolted to the entablature. BORING MACHINE, Vertical. By Messrs. Benjamin Hick and Son, Bolton. By this combinationof three distinct machines,… … c Columns for supporting the entabla-b Entablature. [lure b. c Boring-bar of large machine.d Driving-pulleys worked by leather strap d.e Bevel-wheel and pinion conveying the motion to the upright shaft / through the column a.f rprkht shaft working in footstep t.tr Spur pinion and wheel for working…
