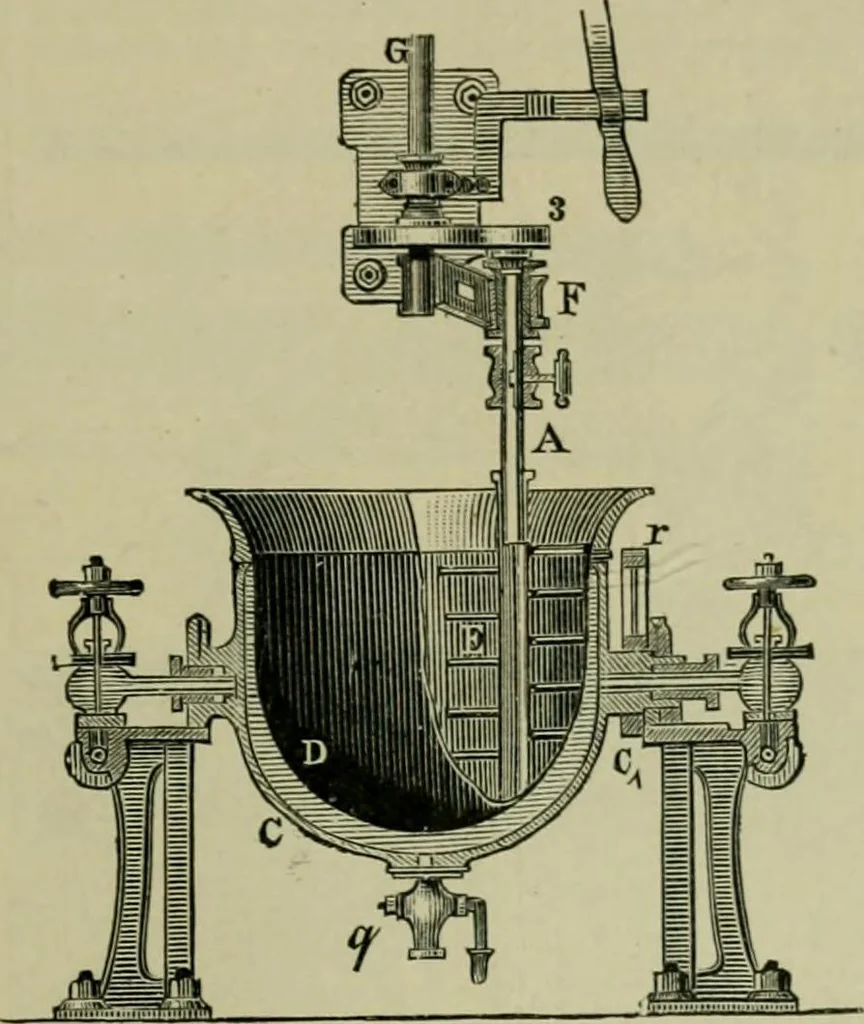

am can be admitted into the funnel J, through asmall pipe in the dome of the pan. Air is admitted to the panthrough the cock D. llulicis pan for boiling dressing preparations (Fig. 22), consistsof an inner (-upper pan I), and a cast-iron outer shell C, the latterbeing provided with east-on… … FiG. 22.—Hubers boiling pan (section). as the uprights, and the other (with the stuffing boxes) arrangedaxially with regard to the trunnions—are provided in the hollowtrunnions. One valve serves to admit steam, the other admittingwater to accelerate the cooling of the finished dressing. Theeffluent…
Textile finishing
