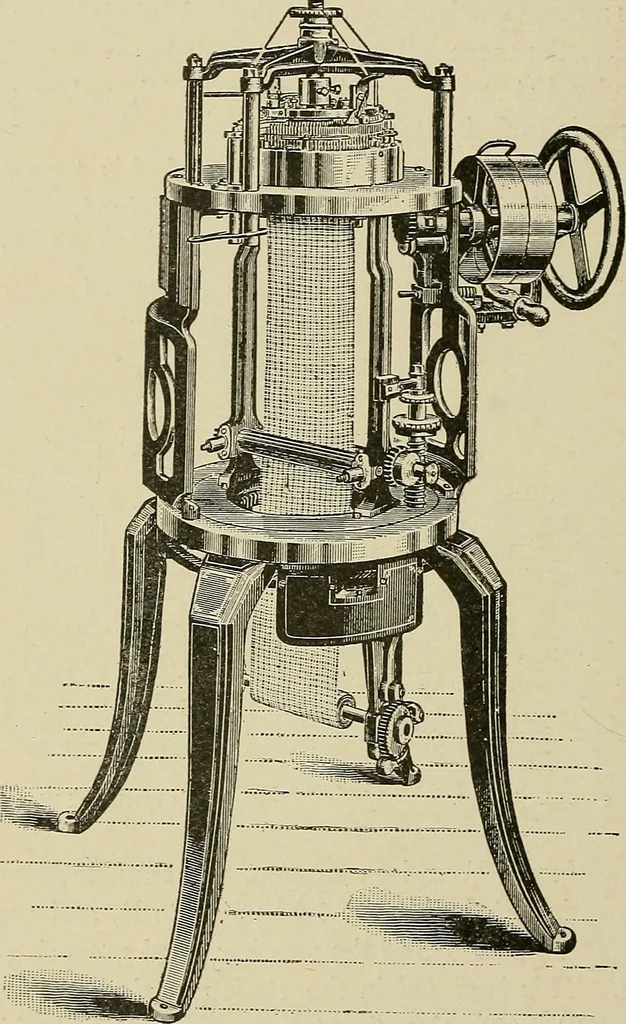

^ cam dial is suspended, fixed to the centerstud by set screws. These dials may be raised or lowered, whenadjusting the plane of the horizontal or dial needles in relation to theplane of the vertical needles in the cylinder by turning the hand wheel … Fig. 67. Plain Machine svith Fabric Roll in Place of Can. K. The thread guides L are fixed to the stationary cam dial in amanner to properly present the thread to the needles at points wherethe dial needles are operated by the cams. 138
