The dyeing of cotton fabrics : a practical handbook for the dyer and student (1901)
Beech, Franklin · London : Scott, Greenwood · leaf 88

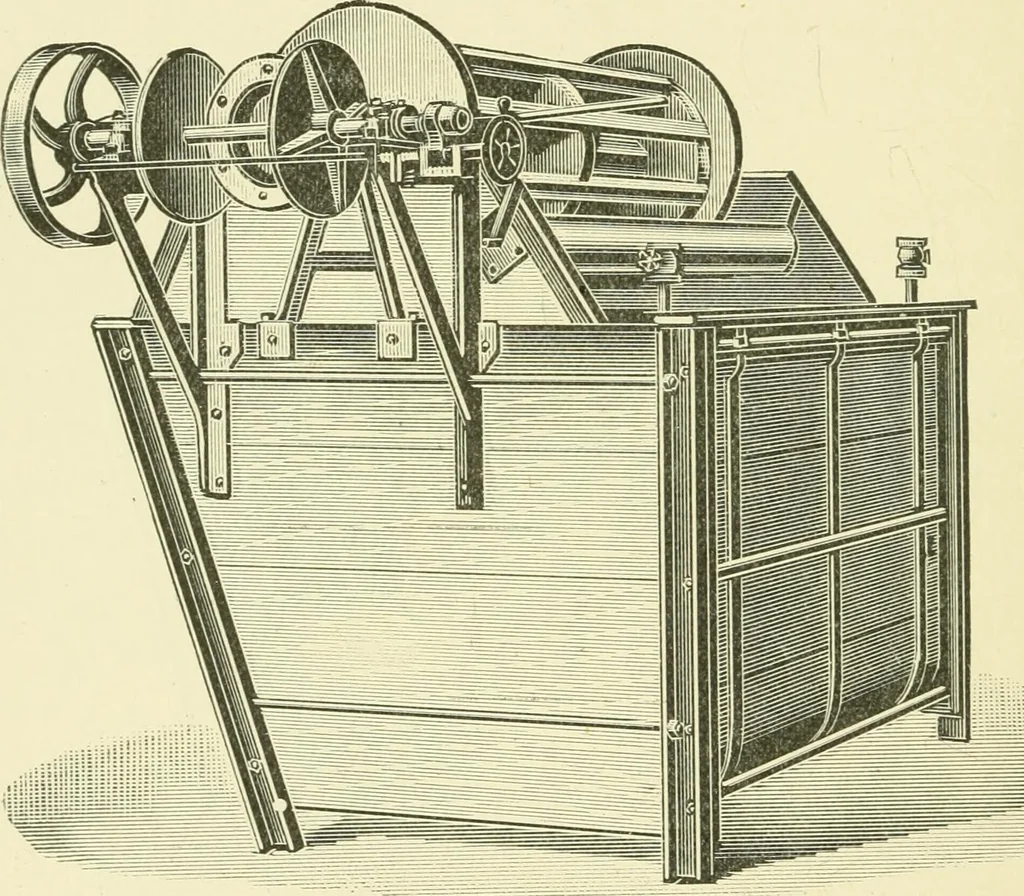

d with holes, or of wooden lattice work, and below 76 THE DYEING OF COTTON FABEICS. which the steam pipes are placed ; the object being to pre-vent the pieces from coming in contact with the steam pipe,and so preventing the production of stains. Above the dye-vat, and towards the back, is the… … Fig. 21.—Cloth-dveino- Machine. will take the pieces full breadth, but often they are somewhatfolded, and so several pieces, four, five or six strings as theyare called, can be dealt with at one time. In this case a guiderail is provided in the front part of the machine. In this railare pegs which…
Dyes and dyeing
Internet Archive · UMass Dartmouth, Claire T. Carney Library · Public Domain Mark 1.0. Free to use for anything.
