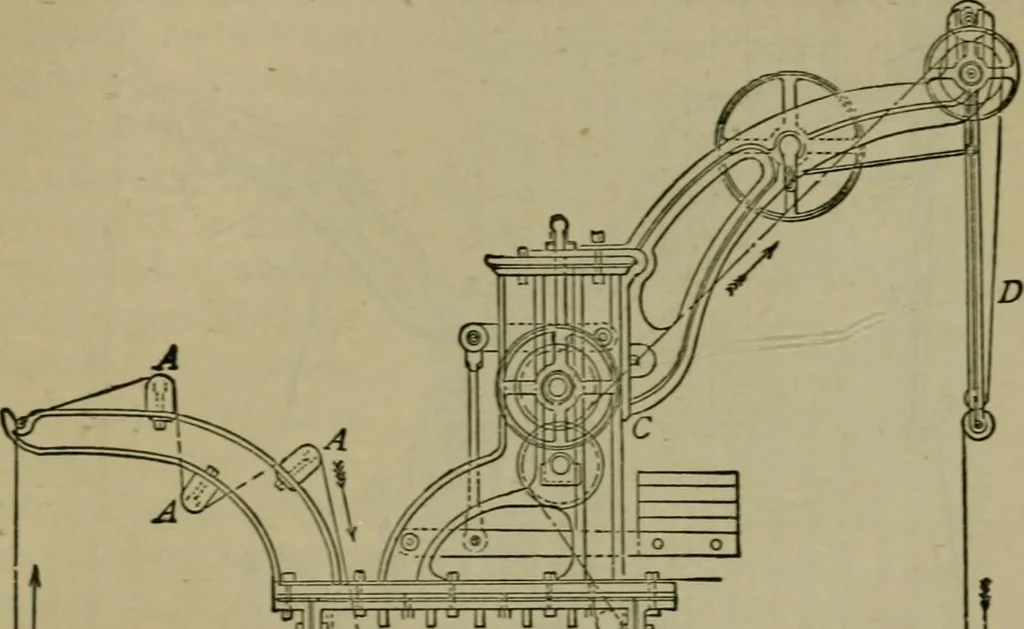

.—The cloth is padded inthe open width in olive oil maintained at a constanttemperature of 110° C. Fig. 91 represents a section of the oil-padding Chap. XX.] ALIZARIN. 439 machine of Messrs. Duncan Stewart and Co. It consistsof a double-jacketed tank b (inside copper, outside iron)for containing… … ? C^ b b b O b^^ l^x>:^^^v-: .^ - -^sgj^ >^^^^;;ys\^^^v>^xKXvV. aH Fig. 91.—Oil-padding Machine. being well opened out and made free from creases beforeentering the oil, by means of the straining bars AAA, andafteiwards loosely plaited down by the folder d. After padding, the cloth is…
