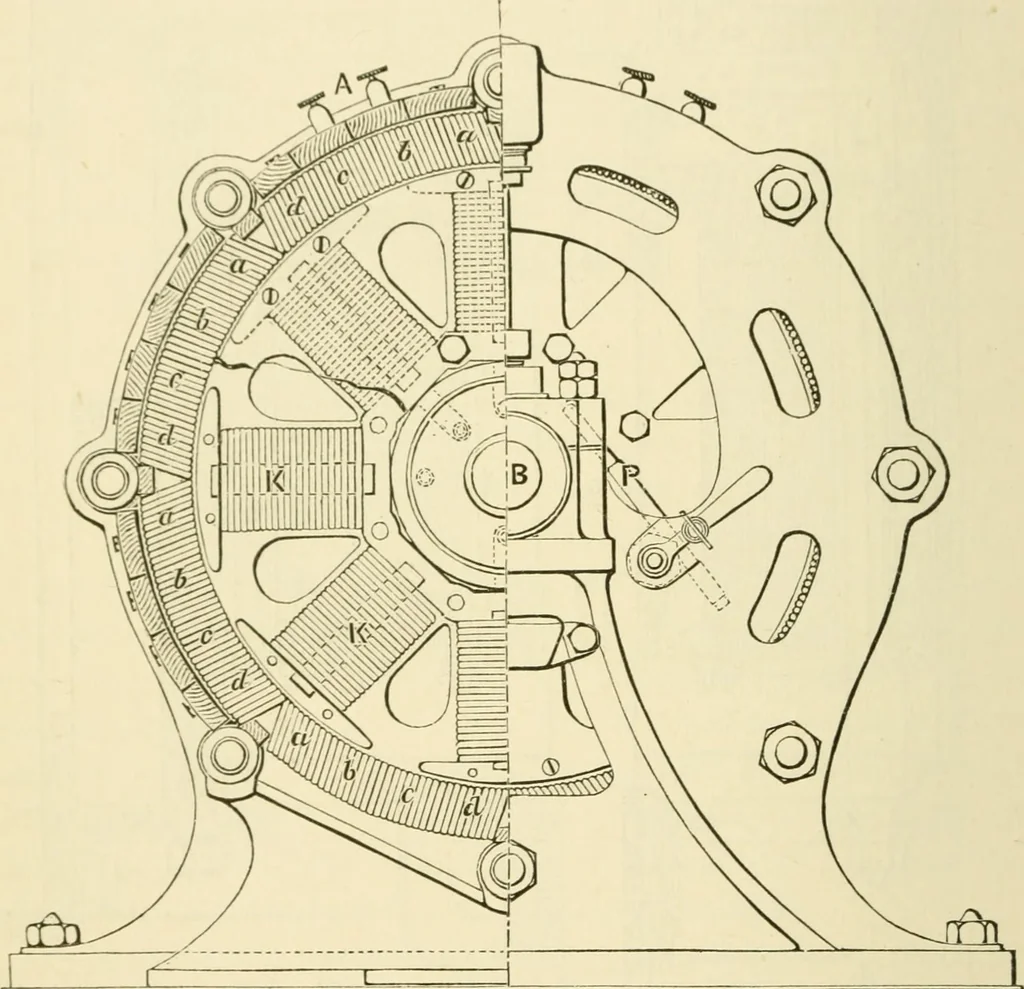

88 IllK KLKlTHU LKillT. Upon each iiliemato one of the eight sections. The inducingmagnet T revolves wiiliin the induction ring, and consists ofeight soft iron cores, K K, etc., projecting radially from a centralhul), II, which is lixed upon a horizontal axis, F, revolving inbearings, and… … Fig. 44. from a belt driven by steam or other power. Like the sectionsof the external ring, tbese radial cores are alternately wound withright and left handed coils. The outer poles of the cores arefitted with enlarged projecting pole pieces, as seen in fig. 44, in grammes alternating current…
