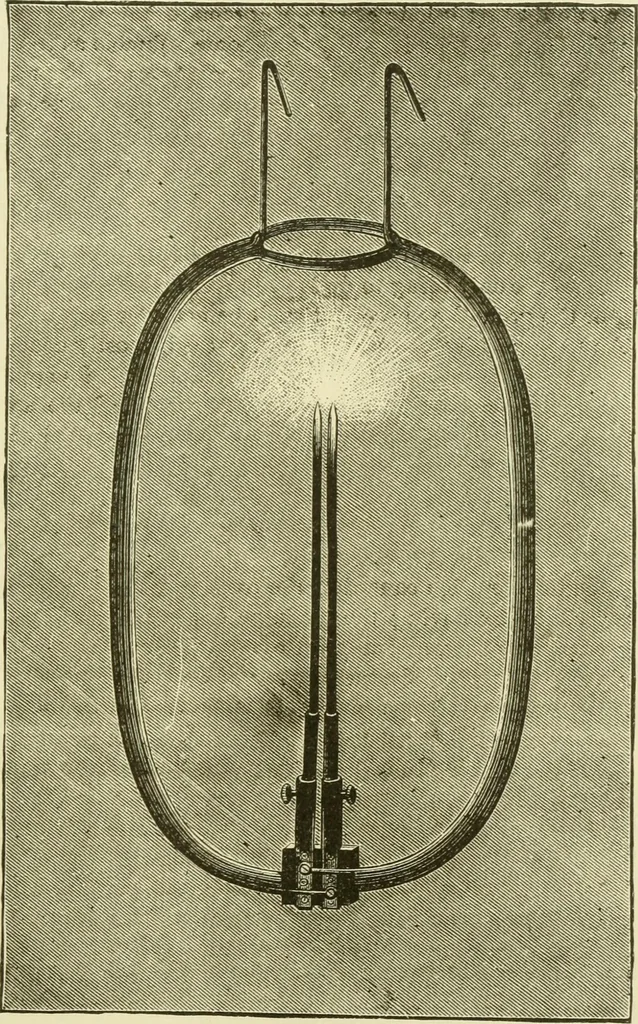

on of each set is attached is pivoted so as tooscillate in the plane of the coil, and can therefore move theleft-hand carbon into contact with the right-hand carbon, oraway from it. The current passes through the regulating coilon its way to the candles, the three left-hand carbons being elec- THE… … Fig. 273. magnet, which becomes magnetic under the influence of thecurrent passing in the coil. A flat armature pivoted at one endcan move up and down in response to the power of the magnet. 452 THE ELECTRIC LIGHT. Eacli of the arms holding the left-hand carbons is connectedwith this armature and…
