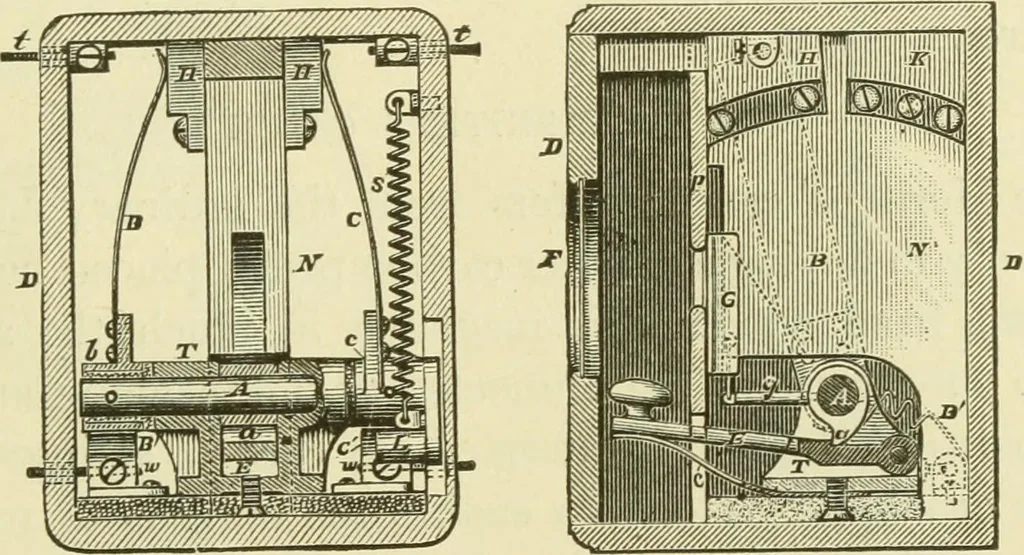

onstruction of the box is shown in figures 318 and 819, whichare vertical transverse sections at right angles to each other.Upon a shaft, A, are mounted insulated metallic cylinders, b andc, which are placed in connection with the electric mains w lOyby means of flexible conductors, one of which is… … Fig. 318. Fig. 319. metallic contact plates, H and K, which are mounted on oppositesides of a central insulated partition, IST. The wires 11 lead tothe lamp or group of lamps, which is designed to be controlledby the cut-out, and these are electrically connected with thecontact plates H H, as…
