Dynamo-electricity: its generation, application, transmission, storage and measurement (1884)
Prescott, George B. (George Bartlett), 1830-1894 · New York, D. Appleton · leaf 549

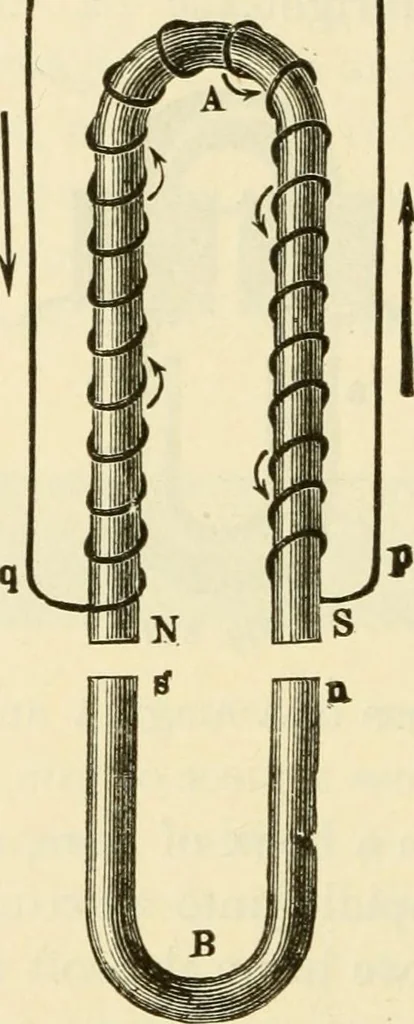

h of the permanent steel magnet, then, when theend w moves away from the pole ft, and m from a, the removal ofcoil n from the south pole h causes an induced current in thesame direction as the current which arises upon the removal of 528 THE ELECTRIC LIGHT. coil m from the nOrth pole a. In order to… … Fig. 328. Fig. 828 represents an electro-magnet in which the turns aresomewhat separated from each other. When the non-magnetichorseshoe A is brought near to the permanent steel magnet B,there arises in the former a magnetic action. A north pole, N, issuddenly formed opposite to the south pole 5,…
