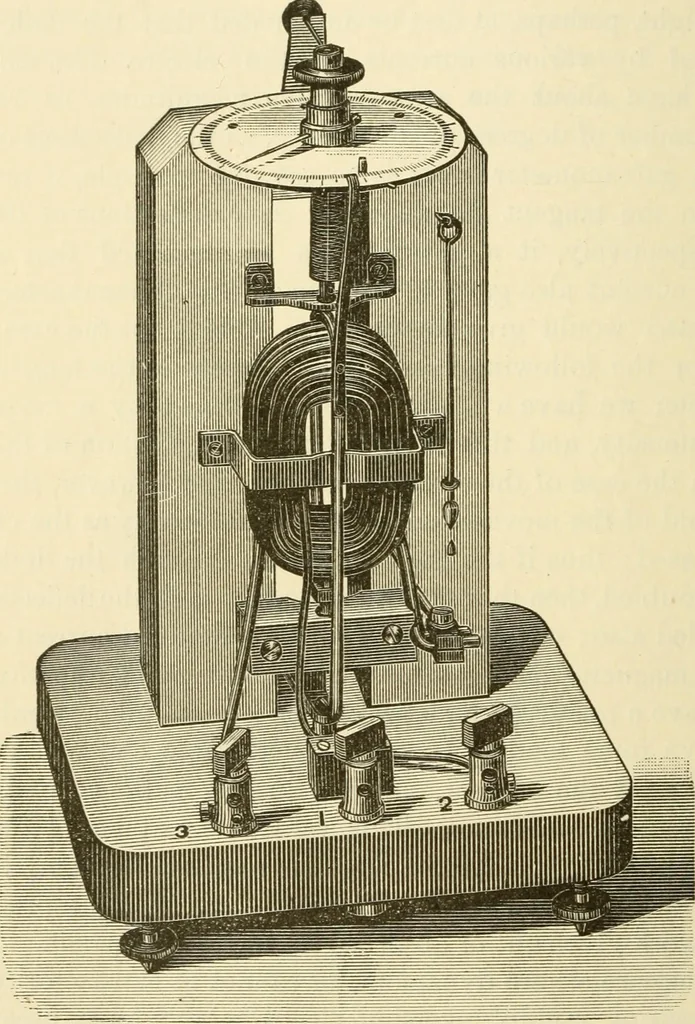

mometer cannot be satisfactorily usedfor measuring rapidly reversing electro motive force, because ofthe retardation arising from self induction. SIEMENS ELECTRO DYNAMOMETER. A general view of this instrument, which is suitable for meas-uring current strength, is shown in fig. 519. It consists of a… … Fig. 519. number of degrees to which this pointer points evidently indi-cates the amount of torsion given to the spiral spring. To therectangle also is fixed a pointer, the end of which just laps over SIEMENS ELECTBO DYNAMOMETER. 819 the edge of the graduated dial. The rectangle encircles a…
