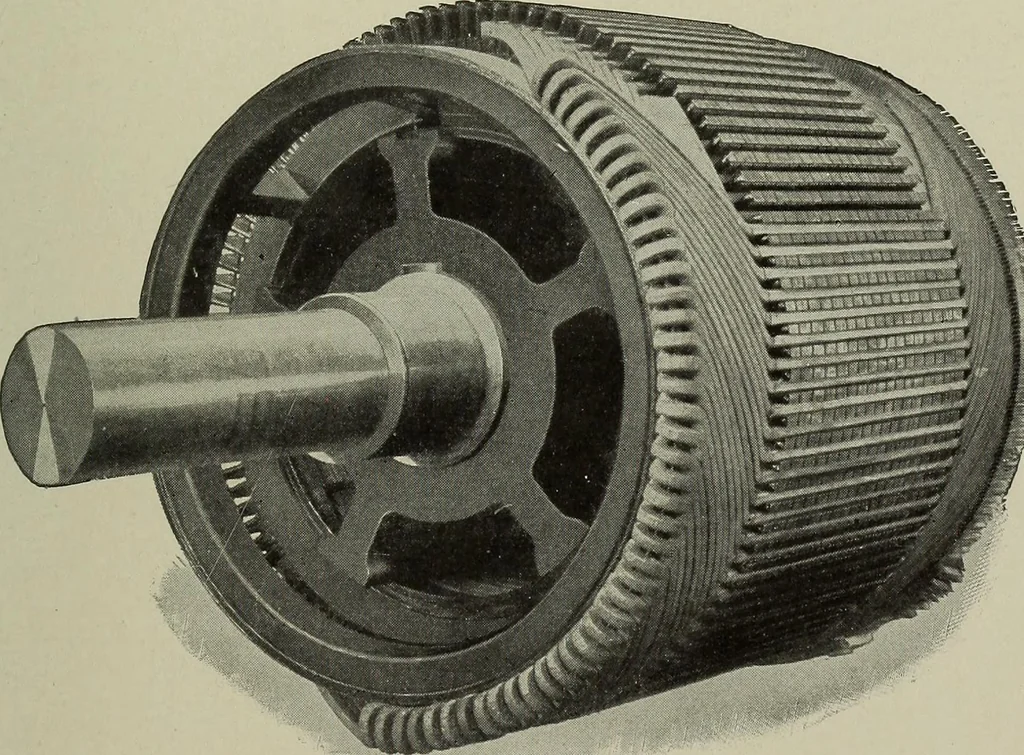

ationmust be provided between the segments and the spiderupon which they are mounted and the clamping ringswhich hold them in position, because the potential differ-ences at these places are the same as the terminal voltage ARMATURES. 77 of the machine. The usual thicknesses of mica requiredfor… … Fig. 44. When the commutator segments and mica strips areassembled in place, a pair of temporary steel rings is placedaround them, the inner one being split into a number ofsections, as shown in Fig. 45. The screws are tightenedso that the component parts of the commutator are firmlypressed…
