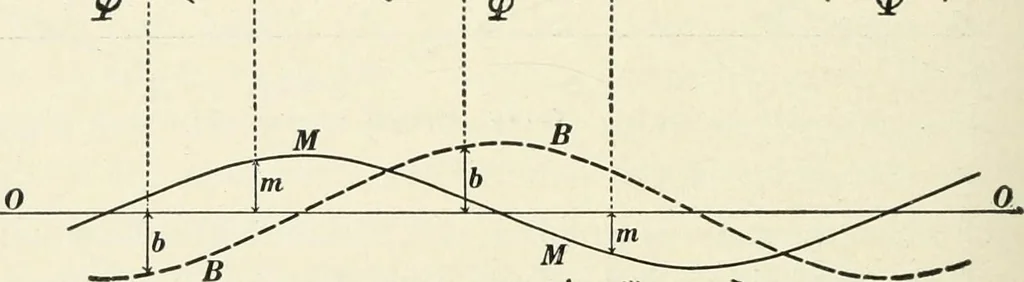

tor conductors is a group in whichcurrents flow away from the reader, the group b of stator con-ductors is a group in which currents flow towards the reader, andthese two groups travel along with the curve MM as the curvemoves to the right, although of course, the stator conductorsthemselves remain… … curves moving »^ > Fig. 259. MM represent the values of the current in the stator conductorsas in Fig. 258. By comparing Fig. 259 with Figs. 257 it will beseen that the groups a and d of stator conductors in Fig. 259produce magnetic flux which crosses the gap space as indicatedin Fig. 259, so…
