Dynamos and motors; a text book for colleges and technical schools (1911)
Franklin, William S. (William Suddards), 1863-1930, Esty, William, 1868-1928 · New York The Macmillan company · leaf 393

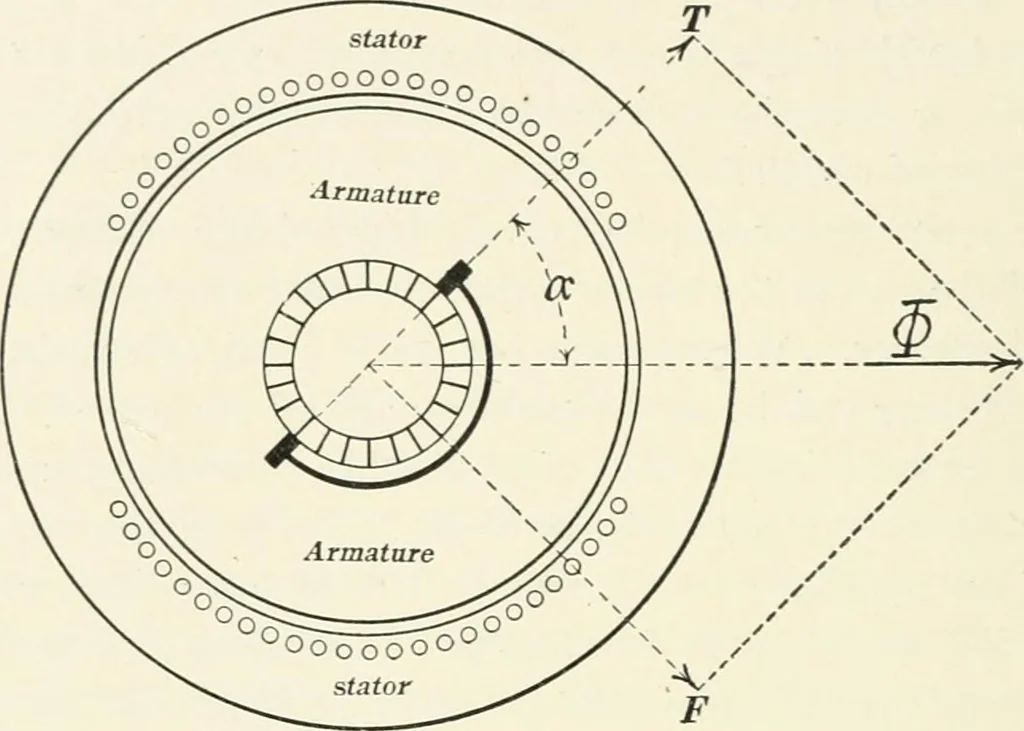

of the repulsion motor are shown in Fig. 280, whichrepresents a two-pole model. The stator winding producesthrough the armature a pulsating flux in the direction of thearrow ^, and, in order to describe the action of the motor, thisflux may be resolved into two component parts, one of whichT is… … stator ^^^ ^1 F Fig. 280.
Dynamos · Electric motors
Internet Archive · Gerstein Library, University of Toronto · Public Domain Mark 1.0. Free to use for anything.
