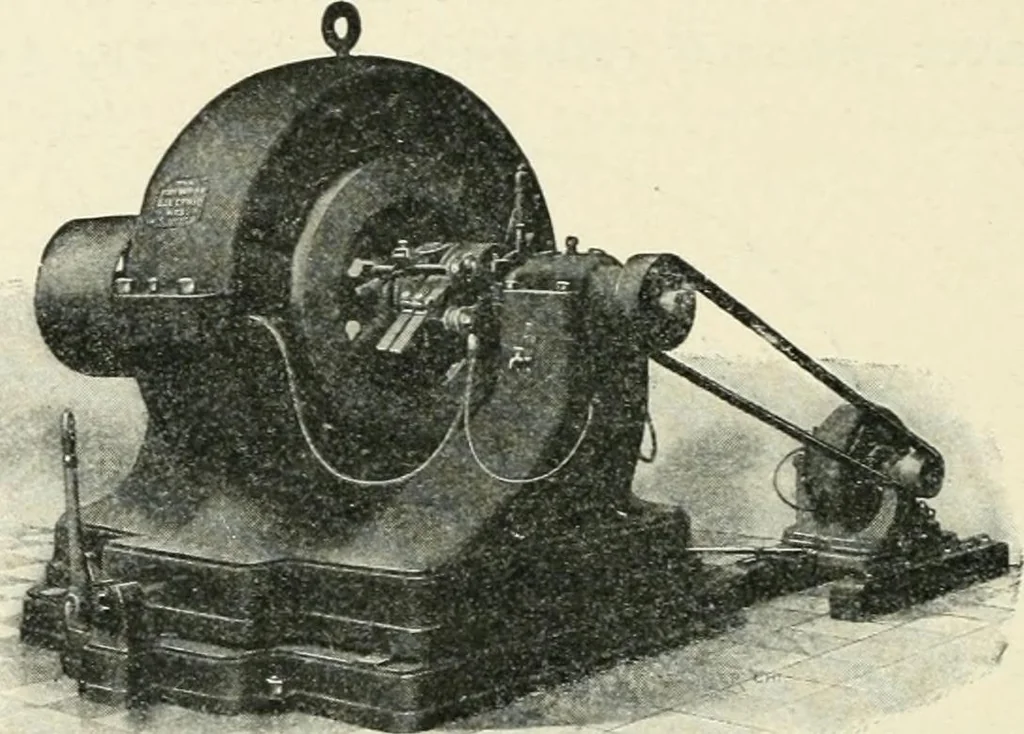

n A A. Figure i6 showssixteen armature slots in each of which four wires are placed. In the revolving-field type of alternator the direct current forexciting the revolving field magnet is delivered to the revolvingstructure by brushes which rub on two insulated metal rings, andthe terminals of the… … Fig. 17. of this type manufactured by the Fort Wayne Electric Works.The figure shows the small belt-driven exciter, and it shows,although somewhat indistinctly, the rectifying commutatorthrough which a series field winding is connected in the maincircuit of the machine as explained in Art. 37.…
