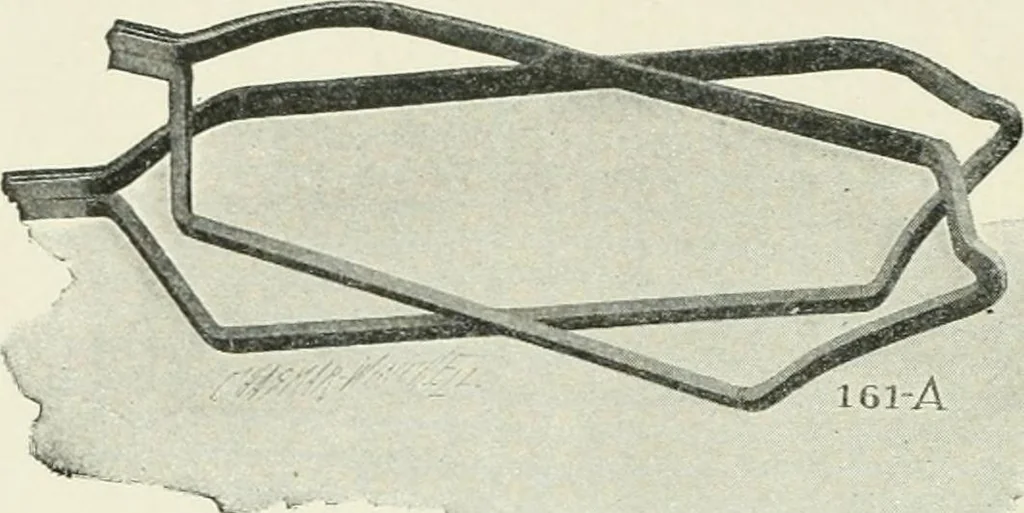

Fig. 34. 54 DYNAMOS AND MOTORS. which are bolted together so that the upper part of the field maybe lifted off when it is desired to remove the armature for repairs.Figure 31 shows the field structure and base of this machine with … IGlA Fiij. 35. the armature and all field windings removed. One of the lami-nated structures which constitutes a combined field magnet coreand pole piece is shown in Fig. 32. These pole pieces are setinto the mould and cast-welded in the field magnet yoke. An
