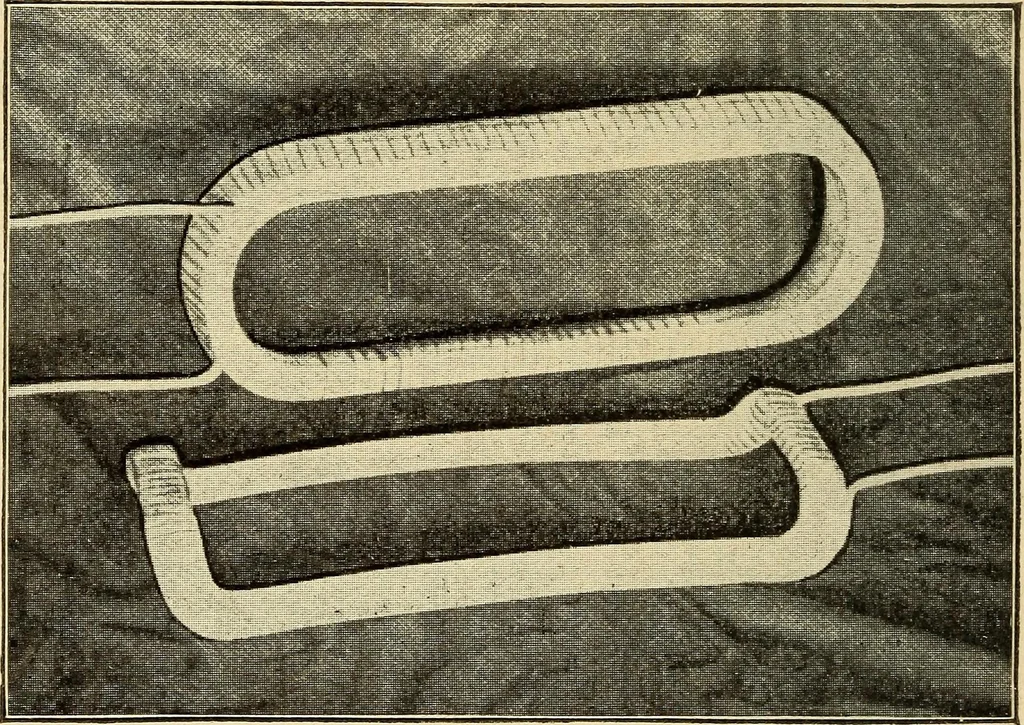

Fig. to.—Moxocyclic Armature. lector rings, forming the main terminalsof the armature. The windings are just 274 THE ELECTRIC MOTOR AND visible in the slots left between the teethor iron armature projections. The shapeof the coils is j*epresented in Fig. 71. Themain coils are flat, while the teaser… … Fio. 71.—Main and Teaser Coils. are bent in such a manner as to permitthem to be laid across the main coils in amidway position, so as to generate theirE. M. Fs. a quarter cycle out of step withthose in the main coils. THE TRAlsrSMISSION OF POWER. 275 A form of monocyclic alterncttor is…
