Early Connecticut houses; an historical and architectural study (1900)
Isham, Norman Morrison, 1864-1943, Brown, Albert F. (Albert Frederic), b. 1862 · Providence, R.I. : The Preston and Rounds company · leaf 283

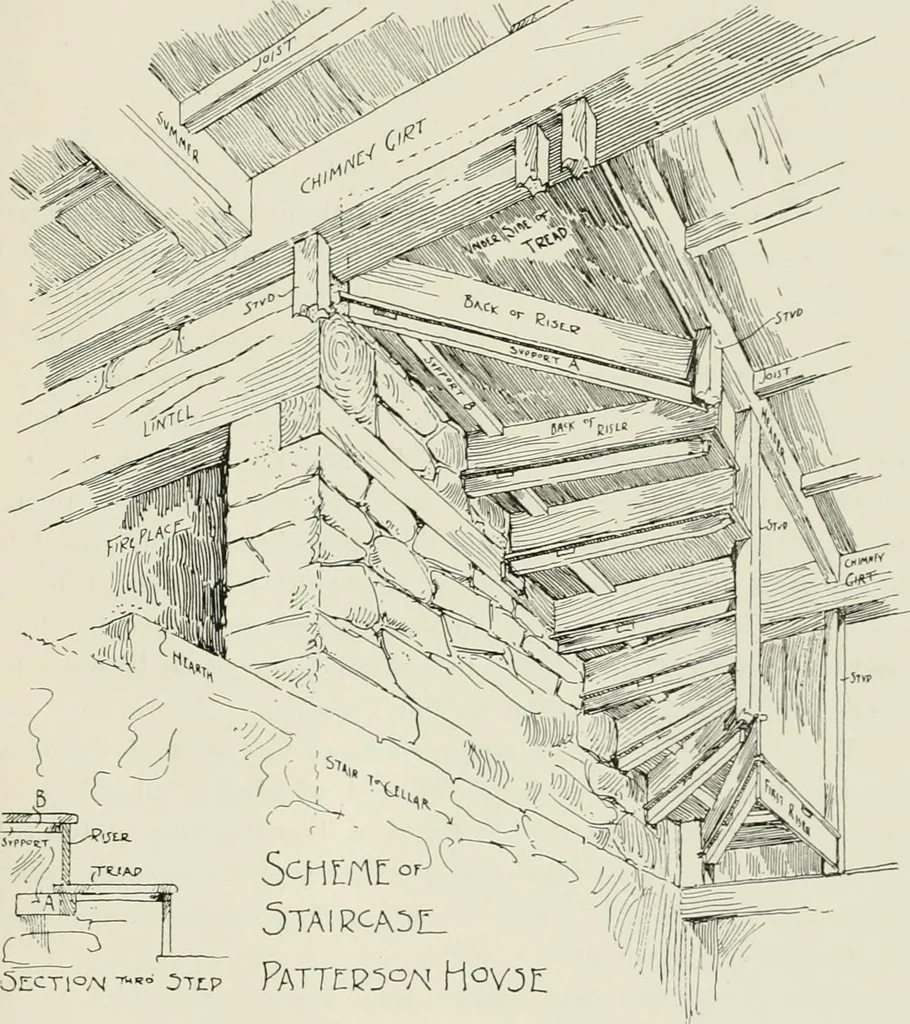

he straight run are cut out in the way shown by the drawing toavoid housing them into the string and to let the string run bywithout cutting it into the saw teeth, to be seen in a modernrough string. In Figure iii we give the lower flight of stairs in the Patter- J. \V. Freese,///j/(?;vV Houses aud… … 5CCT10.N -■= DTtp PATTCP^oAi H^VJE Figure hi. of which we spoke in the Whitman house is here shown as if cutaway. There is no wall string in the first flight, but the sticks 266 EARLY CONNECTICUT HOUSES. carrying the treads are built into the masonry of the chimney. Inthe second flight there is a…
Architecture, Domestic · Historic buildings
