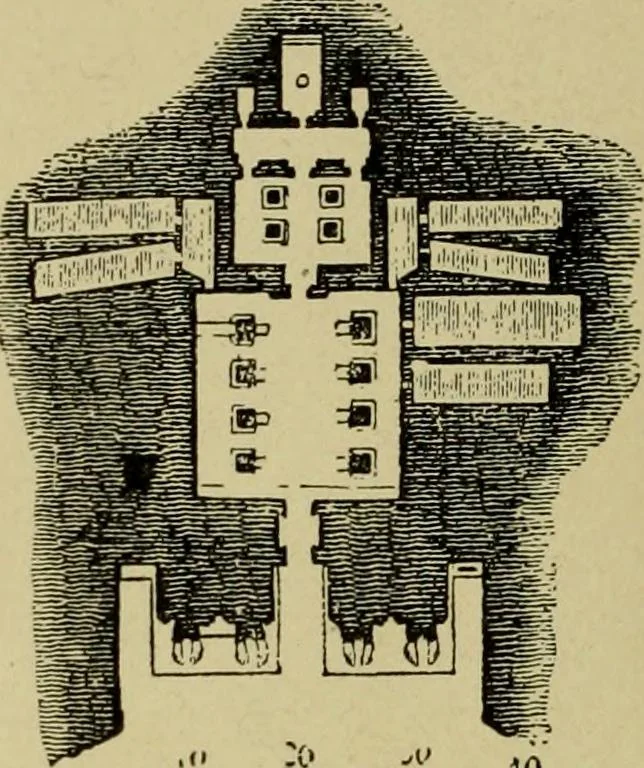

OCK-TEMPLE AT IPSAM-BOUL. These temples possess in every respect a purelyEgyptian form. The external walls are not, however,slanting, but entirely perpendicular, as was necessitated 126 EASY LESSONS IN ARCHITECTURE by the mural connection of the pillars. ■ It is neverthe-less probable that this… … 40 Fig. 48. GROUND-PLAN OF THE ROCK-TEMPLE AT IPSAMBOUL. In most rock-temples a court, which is sometimesopen and sometimes hewn out of the rock, or a coveredvestibule forms the entrance, which opens into an en-trance-hall, with smaller chambers beyond, in which pil-lars or columns are introduced…
