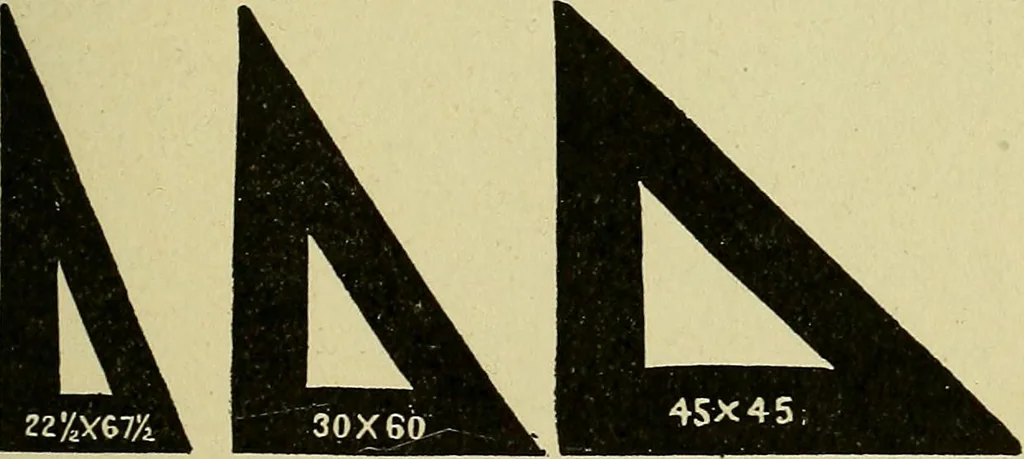

Fig. 10. to drawing as they may be employed in conjunc-tion with the T-square, for lining off angles, orlaying off parallel lines as shown by the dottedlines EG, and FH. These set squares are made … Fig. II. to suit different angles, and in many styles,as will be seen in Fig. 11. The manner of 28 ARCHITECTURAL DRAWING SELF TAUGHT using them will suggest itself as the work pro-ceeds. T-squares of a superior kind may be obtainedfrom any dealer in mathematical instrumentsfor from $i.oo to $6.00…
