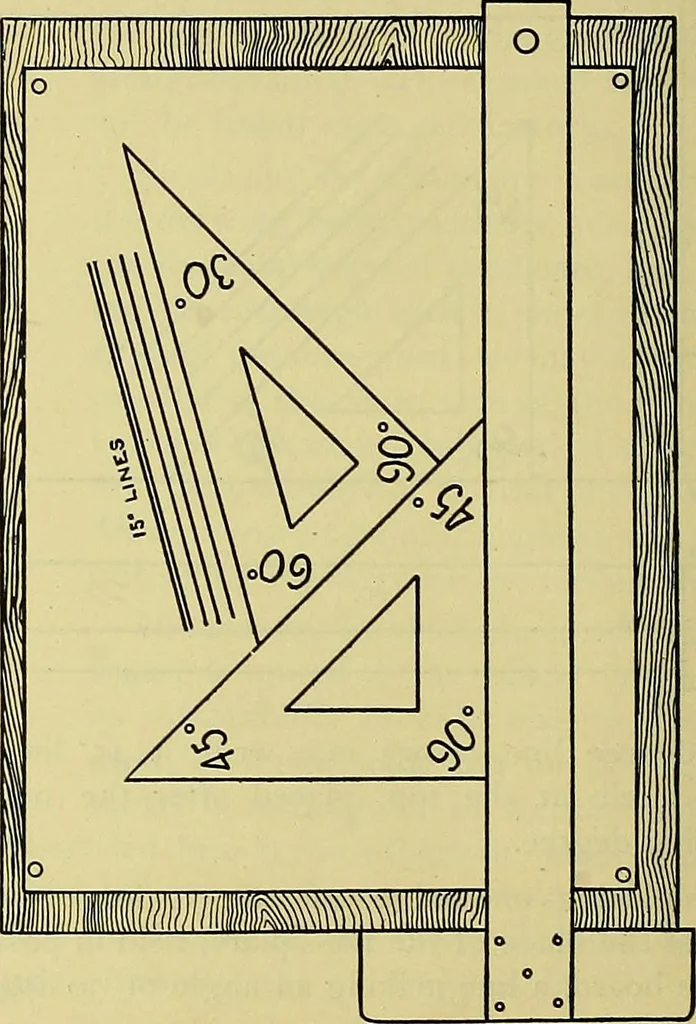

6 By sliding the first triangle upon the second one,any number of lines may be drawn which will be atright angles to the given line. With a knowledge of the preceding rules a great … ROGERS DRAWING AND DESIGN. 47 variety of figures may be drawn. In the followingwe will show how a square, an equilateral triangle,a hexagon and an octagon may be drawn by thesesimple means.
