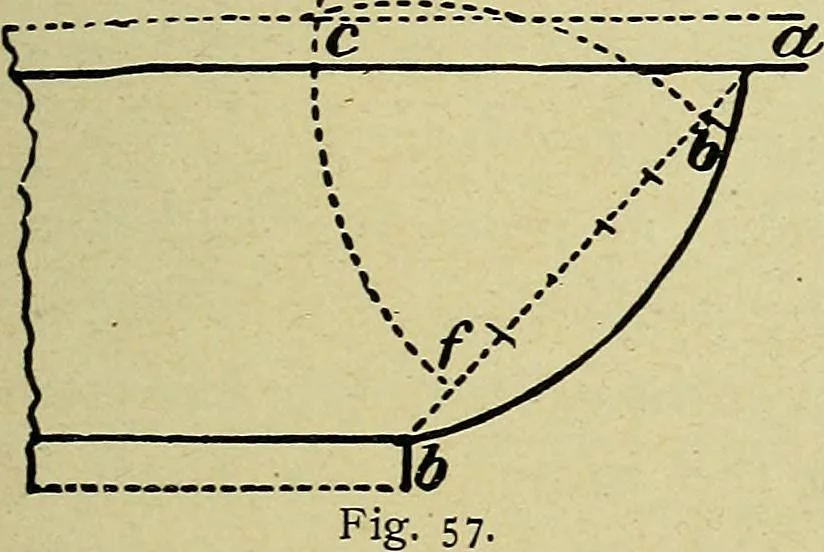

of ig- 5 • getting a deeper moulding. Let a, a, be the upperline and c, c, the lower; from a, drop a perpendic-ular to c] divide a, c, into seven equal parts;through the third of these, from a, draw a line parallel to a, a]T A from b, with b, a,draw the semicir-cle b, d, and fromd, draw to e,… … 70 ARCHITECTURAL DRAWING SELF TAUGHT employed largely by the Greeks in manypositions. Let a, b be the two points; join themby a line a, b\ divide this into seven equal parts;from b, with b, c, and from a, with the sameradius, describe arcs cutting in c, from c, withc, a, describe the arc a, b.…
