Easy steps in architecture and architectural drawing .. (1915)
Hodgson, Frederick Thomas, 1836- [from old catalog] · Chicago, Ill., Printed by F. J. Drake & co. · leaf 452

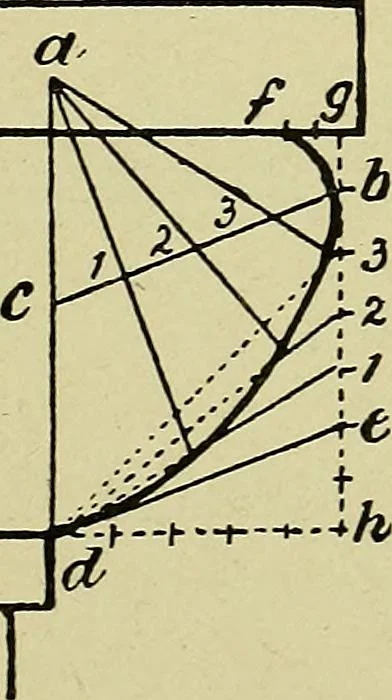

Fig. 5Q- d, by a straight line, which bisect by a line per-pendicular to it, meeting^, a, in a\ join a, d, and … Fig. 60. produce the line to c. Then from a, as a center, with the radius a, c, or a, g, describe the curve c, g. Fig. 60 is a method where the tangent d, e, 72 ARCHITECTURAL DRAWING SELF TAUGHT and the projections are given. Through thepoint of extreme projection b, draw the verticalline gy h, and…
Architecture · Architectural drawing
