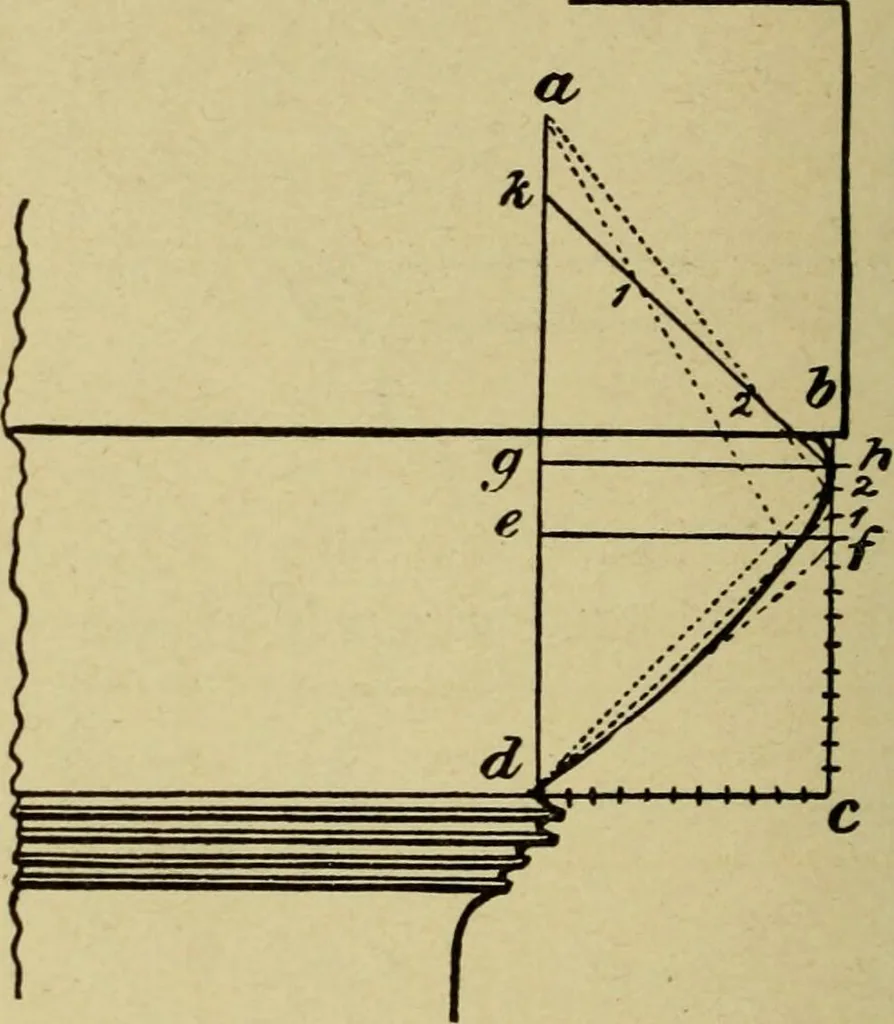

Fig. 60. produce the line to c. Then from a, as a center, with the radius a, c, or a, g, describe the curve c, g. Fig. 60 is a method where the tangent d, e, 72 ARCHITECTURAL DRAWING SELF TAUGHT and the projections are given. Through thepoint of extreme projection b, draw the verticalline gy h, and… … Fig. 6i. of equal parts, and through the points of divisionin c, b, draw from a, straight lines, and throughthe points of division in c, b, draw from d, rightlines, cutting those drawn from a. The inter-sections will be the points through which thecurve is traced. In Fig. 6i I exhibit a method of…
