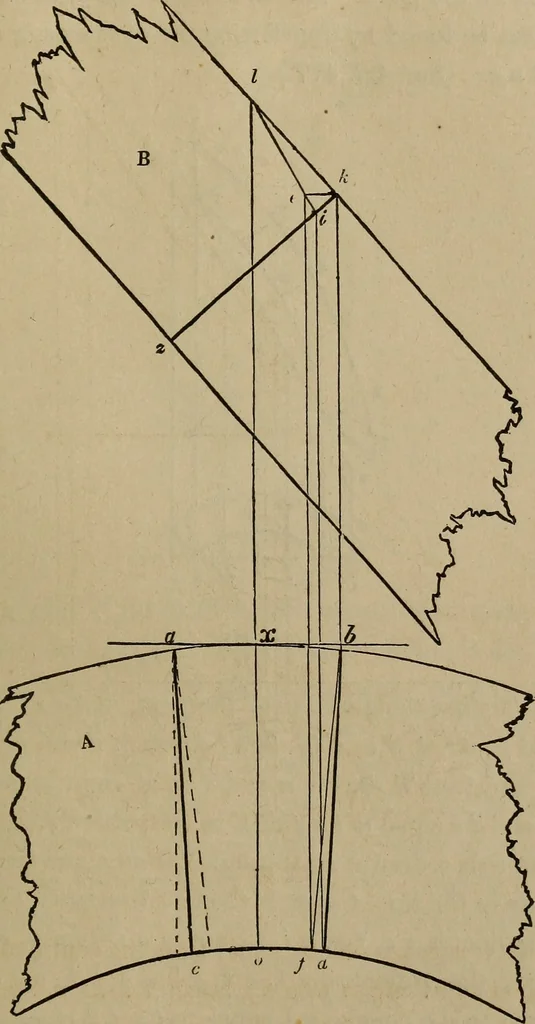

w a line for the joint; in the samemanner, draw the joint at k ; then a: y will be the falling-mouldfor til at part of the rail which extends from 5 to 6 on the plan. 473.— To find tl,e face-mould for the rail of a winding-stairs.From the extremities of the joints in the falling-mould, as Ar, zand… … Fig. 306. shown at half their full size. A is the plan of the rail, and B isthe falling-mould ; in which k z is the direction of the butt-joint.From k, draw k 6, parallel to I o, and k e, at right angles to k b ;from 6, draw b /, tending to the centre of the plan, and from/, draw/ e, parallel iob k…
