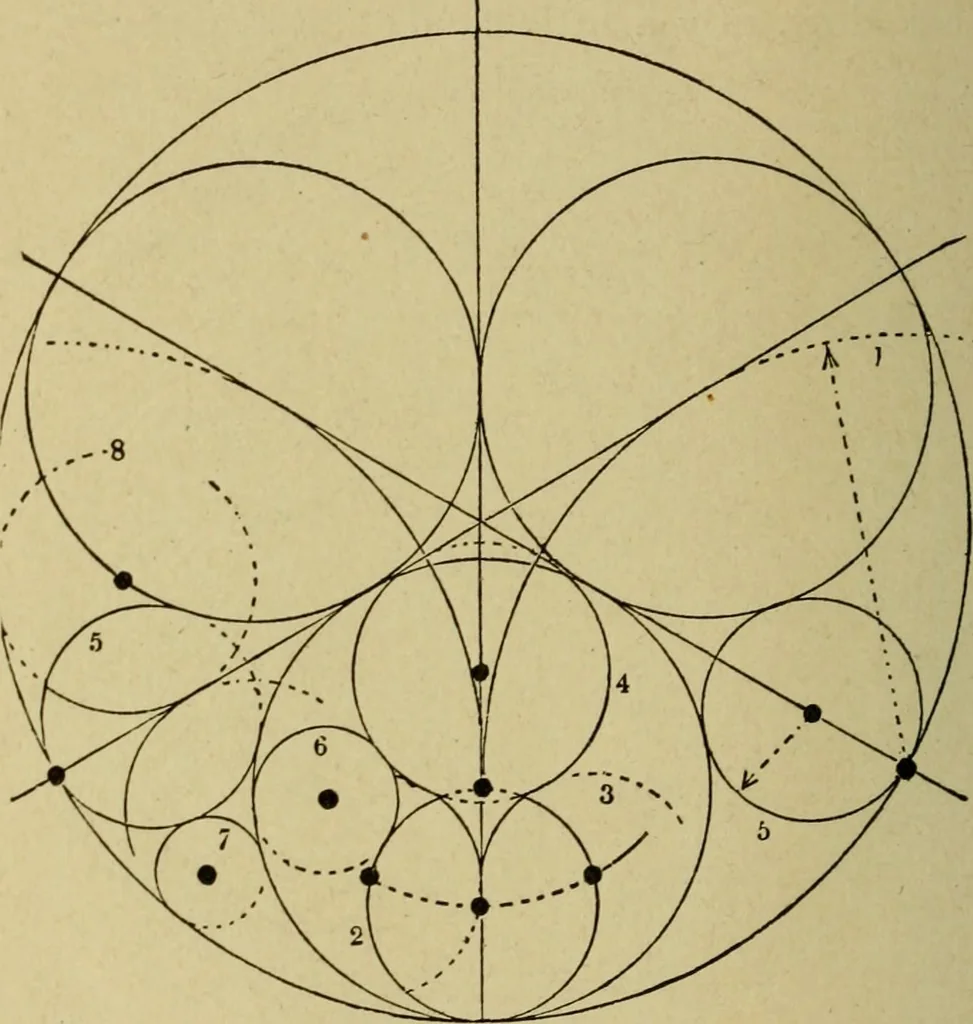

Fig. 218. student will soon be able to draw the completedwork, Fig. 218. In Fig. 219 we have another skeleton for astill more elaborate piece of work. The centers 196 ARCHITECTURAL DRAWING SELF TAUGHT are all shown by black dots, and portions of thecurves are also given. The completed workshown at… … Fig. 219. sufficient to give the student a good insight intoGothic tracery work, but it must be rememberedthat in Gothic work the designs of this characterare innumerable. Portions of these designs are ARCHITECTURAL DRAWING SELF TAUGHT 197 used in window and door heads, and in ahundred other…
