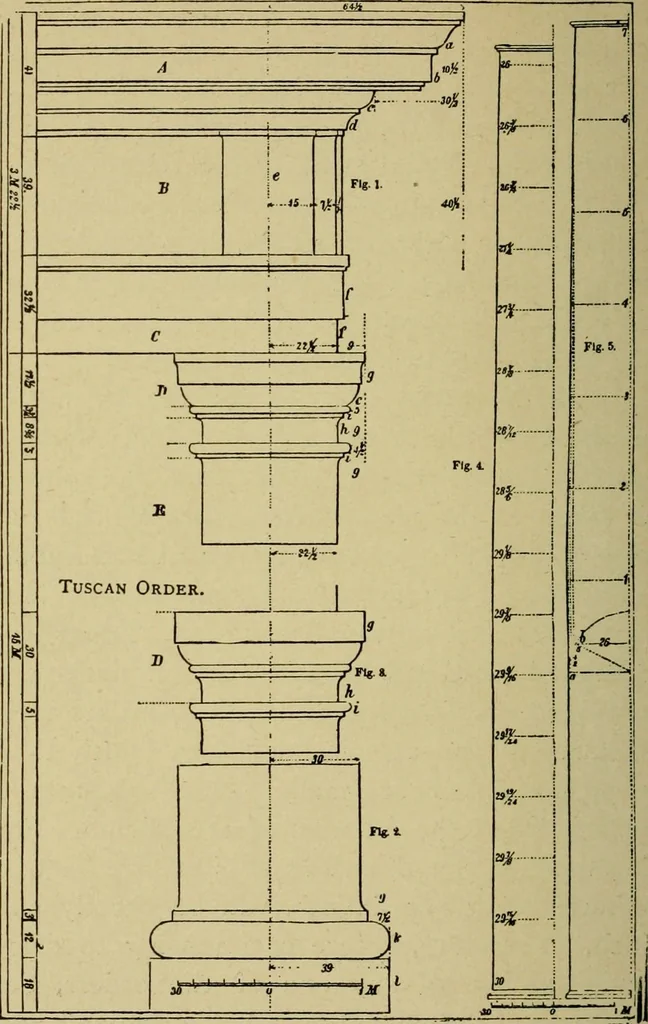

ch. Being pro-portional measures, modules and minutes arenot fixed ones like feet and inches, but are vari-able as to the actual dimensions which theyexpress — larger or smaller according to theactual size of the diameter of the column. Forinstance, if the diameter be just five feet, aminute being… … Fig. 239. ARCHITECTURAL DRAWING SELF TAUGHT 2S7 from that form a scale of equal parts, by sixtydivisions, then lay off the widths and heights ofthe different members according to the propor-tions of the required order as marked on thebody or on the sides of the illustrations. Fig. 239 presents an…
