Radford's architectural drawing : complete guide to work of architect's office, drawing to scale--tracing--detailing--designing --classic order of architecture. A complete and thorough course, clearly written and beautifully illustrated; suited alike to individual study and class instruction (1912)
Radford, William A., 1865- · Chicago, The Radford Architectural Company · leaf 165

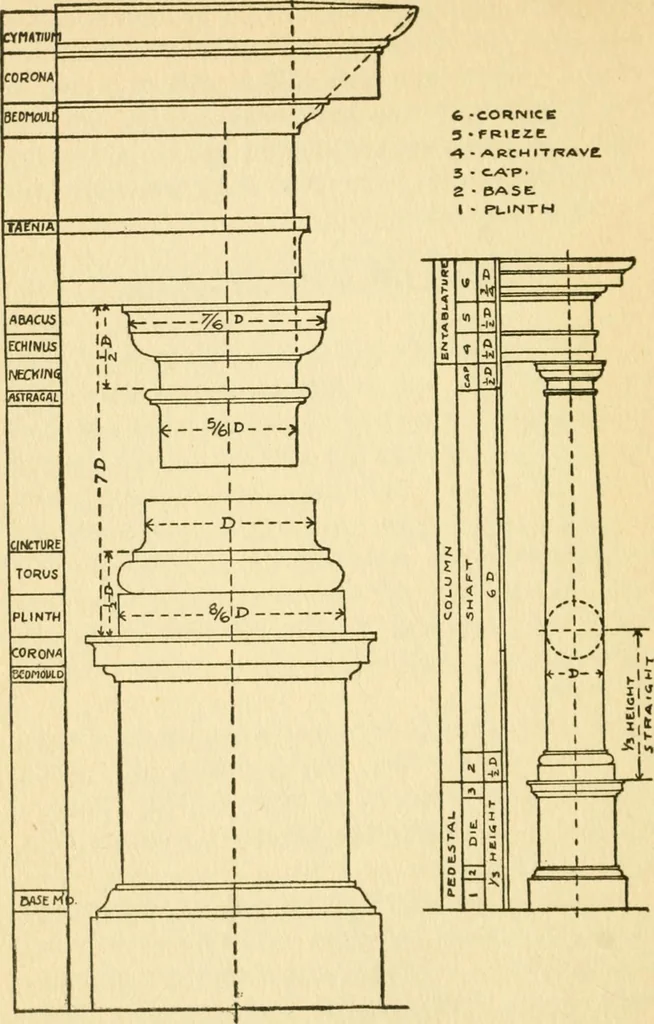

he Tuscan, Doric, Ionic, and Cor-inthian. (See Figs. 83 to 86.) A fifth Order—the so-called Composite Order—combines fea-tures of the others. It will be noticed that all the ornamentationon the mouldings has been omitted for the sakeof clearness in revealing the important propor-tions. Each Order… … Pig. 83. The Tuscan Order. AECHITECTUEAL DEAFTING 318 usually omitted. As will be seen from thedrawings, the entablature has three divisions—the cornice, frieze, and architrave; the columnis divided into the cap, shaft, and base; thepedestal, into the cap, die, and base. The entablature varies from…
