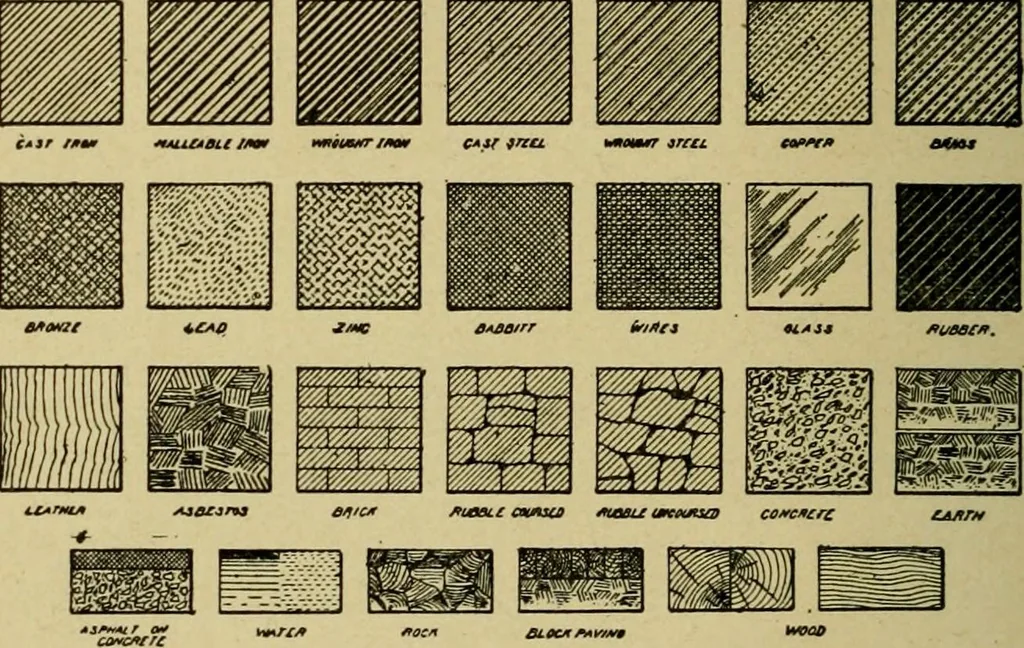

materials are shown by themanner in which the sections of such materialsare hatched or lined off as may be seen by theillustration shown at Fig. 251, where a largenumber of sections are given. By this method 258 ARCHITECTURAL DRAWING SELF TAUGHT the material is recognized by the method ofhatching,… … hig 251. higher class of drawing, it may not be out ofplace to say a few words on shading, and offer afew rough illustrations, showing how someobjects may be shaded even by an inexperiencedhand. The principles of shading are verysimple, but do not seem to be generally under-stood, even by…
