Educational woodworking for home and school (1908)
Park, Joseph C · New York, MacMillan · leaf 113

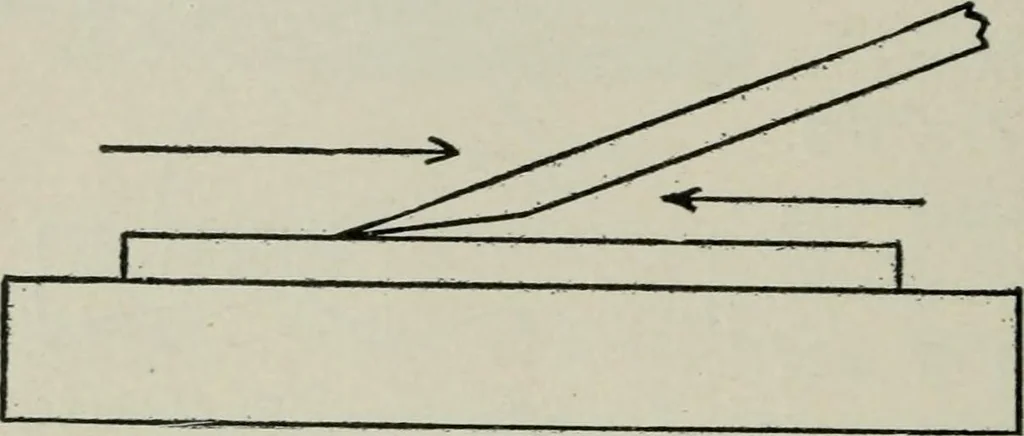

nife and turn-ing chisels are ground asshown in Fig. 110, with Fig. no.— Blade of sloyd knife (showing correct grinding). \ a straight bevel on each fig. in.—Chisei (show- . mg correct grinding.) Side 01 the cutting edge.Ordinary chisels and plane bits have a bevel only on oneside, as shown in Fig.… … Fig. 112. wire edge is turned up on the straight edge. The straightedge is then held flat on the stone and shoved back andforth a few strokes. These two processes are repeateduntil the wire edge disappears and a keen cutting edge is produced. Afew strokesmade across thepalm of thehand will alsohelp…
Manual training · Woodwork
Internet Archive · University of Toronto, Robarts Library · Public Domain Mark 1.0. Free to use for anything.
