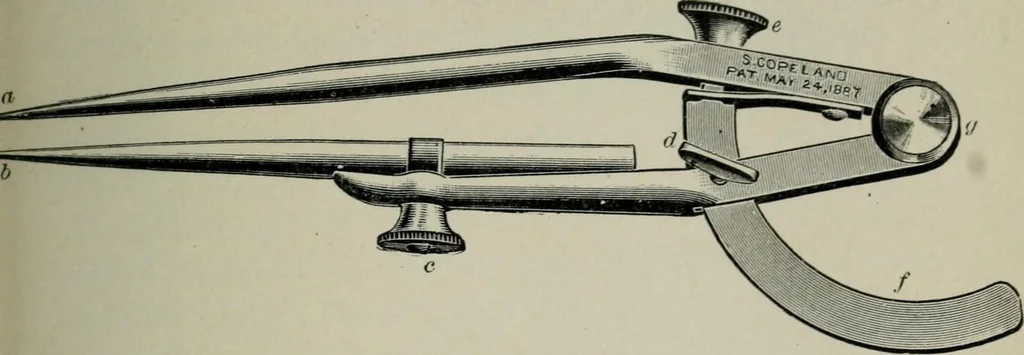

ed that the gauge head is reversible, and the flat sidecan be used for ordinary work. The patent attachmentcan, however, be used on nearly every make of gauges. 17. Dividers or Compasses. — Dividers or compassesare used in dividing lines, in describing arcs and cir-cles, in measuring figures, and… … Fig. 18. — Copeland dividers with one movable point, a, fixed point;b, movable point; c, d, e, set screws; /, arc; g, joint. construction and parts are shown in Fig. 18. In workingat the bench great care should be exercised not to lose anyof the set screws. 18. Calipers. —Calipers are instruments…
