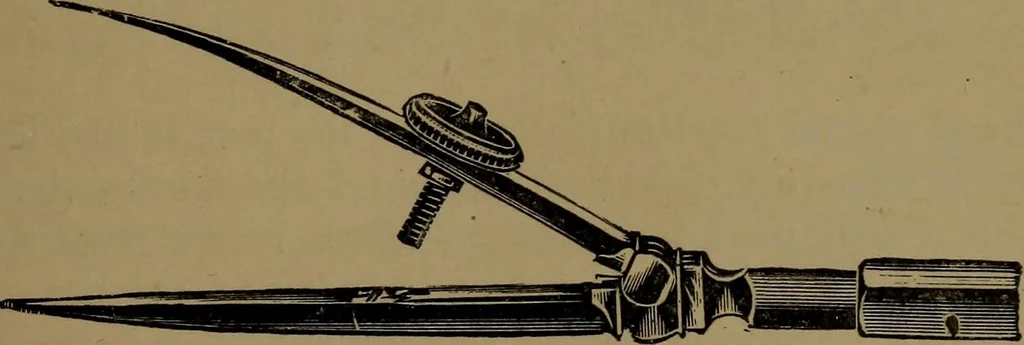

ens, with ascrew and a milled head for regulating thedistance between them. It is particularly DBA UGHTSMENS INS TR UME NT 8. 25 useful where the lines to be drawn are curved or of irregularform. A ruling pen especially designed for drawing curved lines isshown in Fig. 23. The handle is tubular,… … Fig. 20.—Lift-up Nib. <i|l.Mlljft Fig. 21.—Square Handled Pen.
